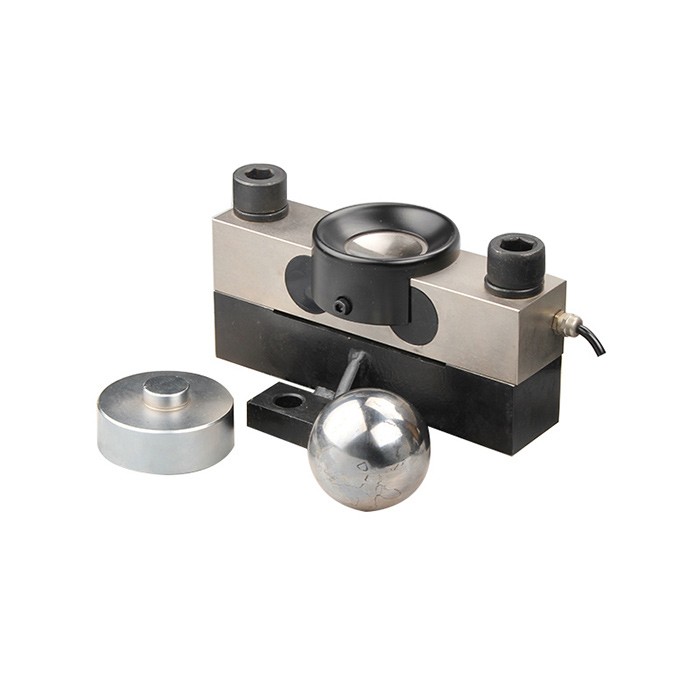

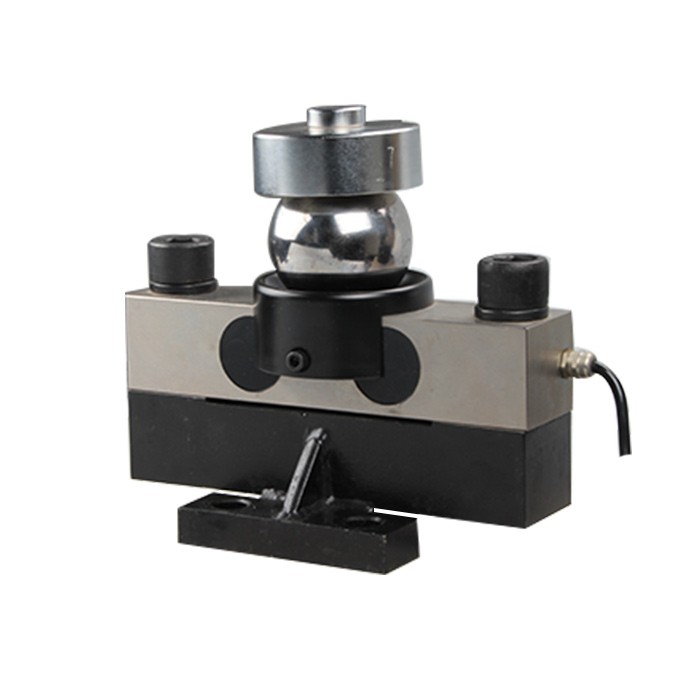

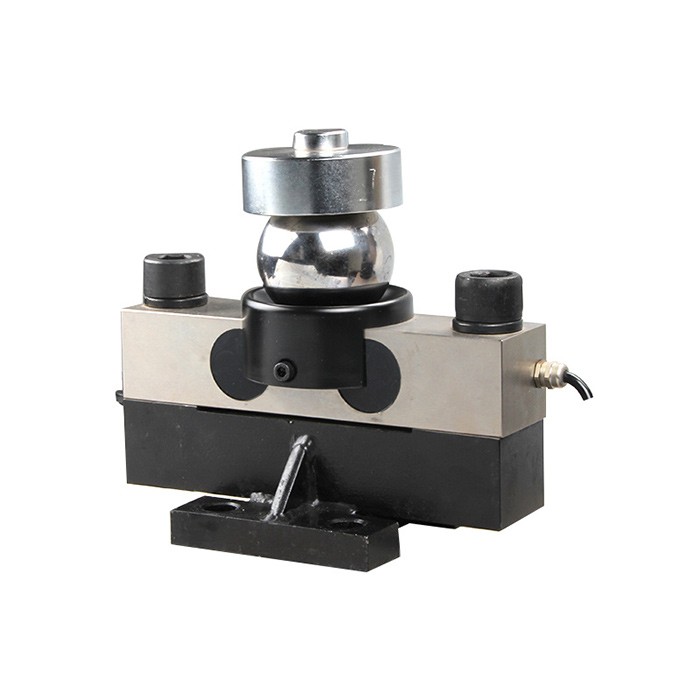

QS1 Double Ended Shear Beam Load Cell

Description:

Model: QS1

Features:

1. Capacities (t): 10 to 30

2. Compact structure, easy to install

3. The design of steel ball and head structure

4. High capacities with low profile

5. High comprehensive precision, high stability

6.High side load tolerance

7. High quality alloy steel with nickel plating

8. Degree of protection reaches to IP66

Applications:

Be suitable for the fields of Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

Specifications:

Rated Load

t

10,15,20,25,30

Rated Output

mV/V

2.0±0.0050

Zero Balance

%R.O.

±1

Comprehensive  Error

%R.O.

±0.03

Non-linearity

%R.O.

±0.03

Hysteresis

%R.O.

±0.02

Repeatability

%R.O.

±0.02

Creep/30 minutes

%R.O.

±0.03

Compensated Temp. Range

-10~+40

Operating Temp. Range

-20~+70

Temp. effect/10 on output

%R.O./10

±0.02

Temp. effect/10 on zero

%R.O./10

±0.02

Recommended Excitation Voltage

VDC

5-12

Maximum  Excitation  Voltage

VDC

15

Input impedance

Ω

770±10

Output impedance

Ω

700±5

Insulation resistance

≥500050VDC

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

300

Material


Alloy Steel

Degree of protection


IP66

The length of the cable

m

13m

Wiring code

Ex:

Red:+     Black

Sig:

Green:+    White

Dimensions(in mm):
