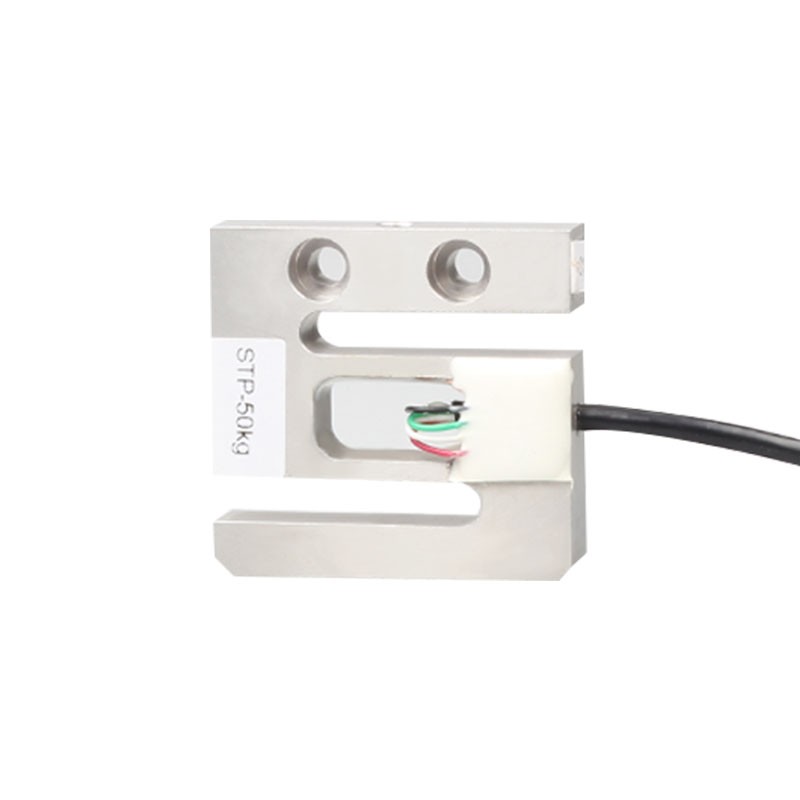

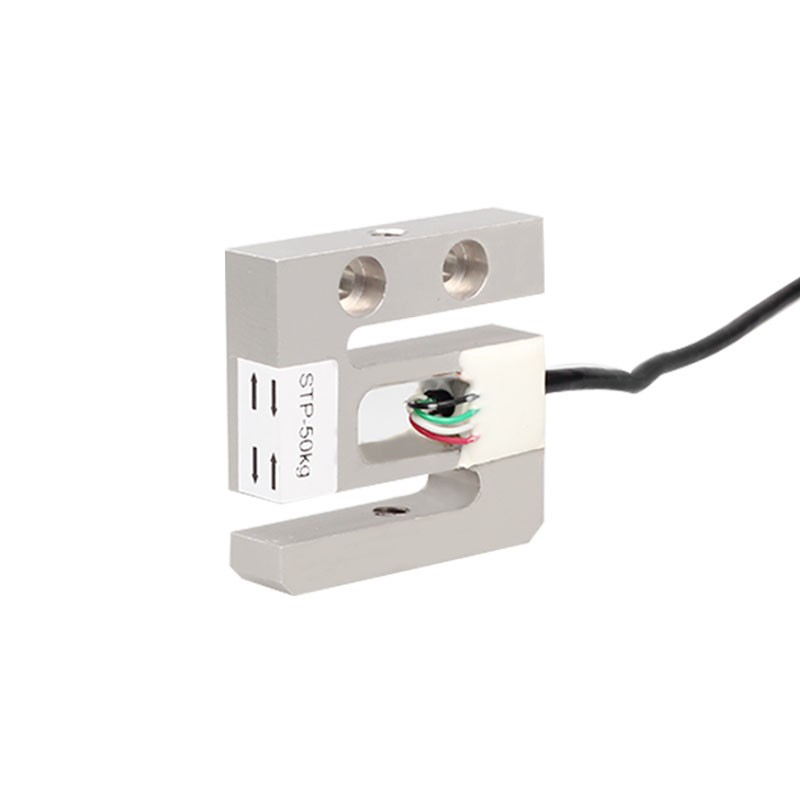

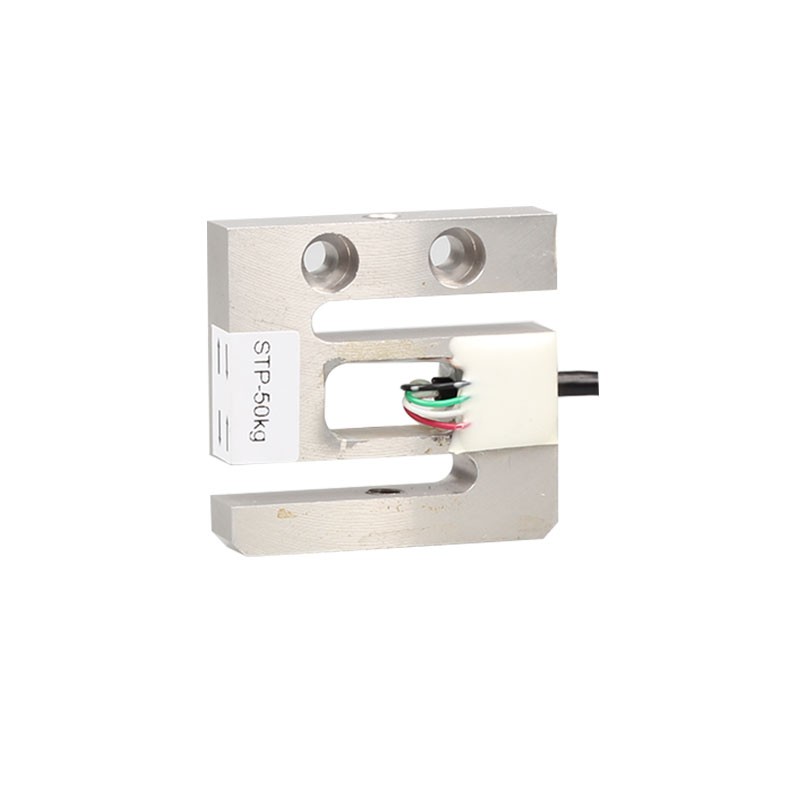

S-Type load cell

STP

Description：

Model: STP

Features:

1. Capacities (kg): 2 to 50

2. Compact structure, easy to install

3. Compression and tension load cell

4. High comprehensive precision, high stability

5. Anodized Aluminum Alloy

6. Resistance strain measurement methods

Applications:

Be mainly used for the tensile testing, for example, the testing of force gauge

Specifications:

Rated Load	kg	2,5,10,20,50,
Rated Output	mV/V	1(2kg), 2(5-50kg)
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.05
Creep/30 minutes	%R.O.	±0.05
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	350±5
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Aluminum
Degree of protection		IP65
The length of the cable	m	0.2

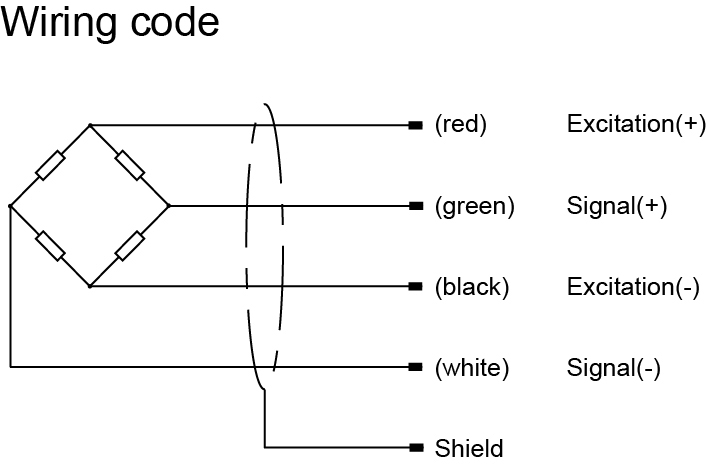

Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

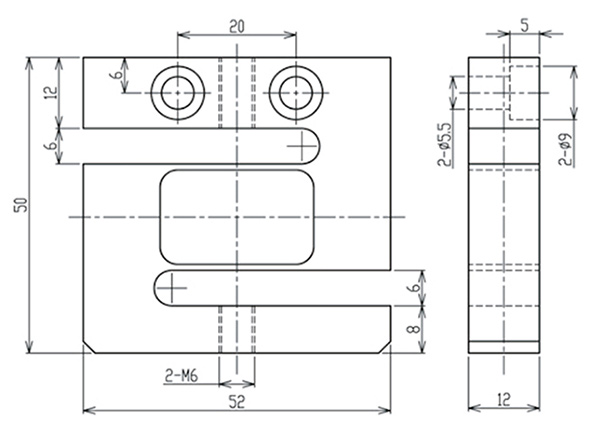

Dimensions(in mm)：
