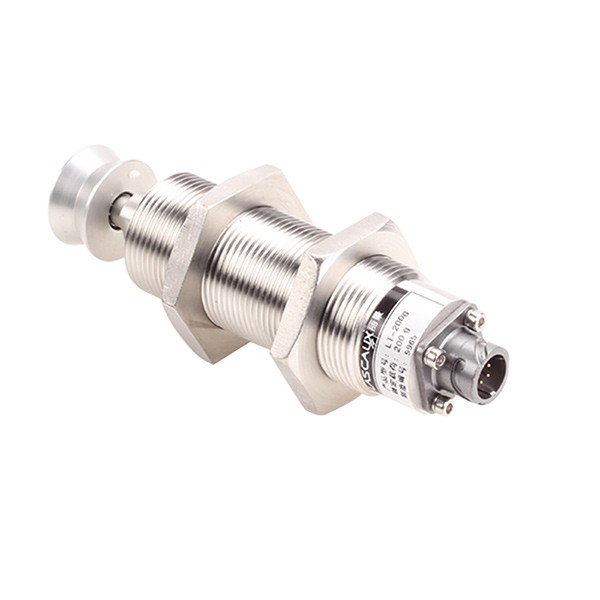

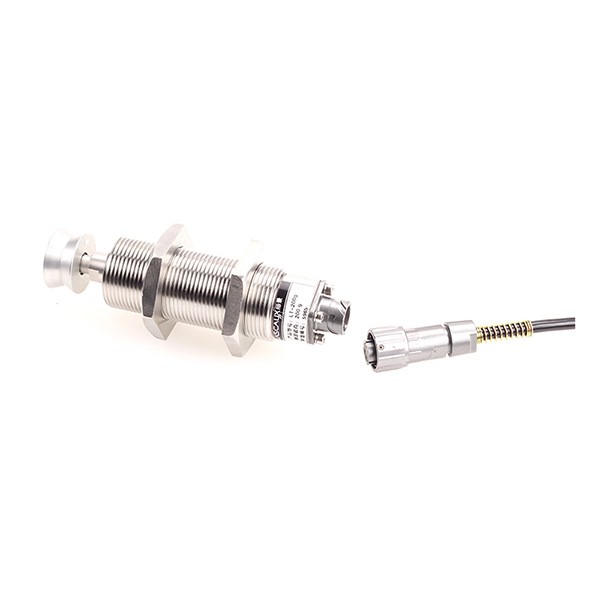

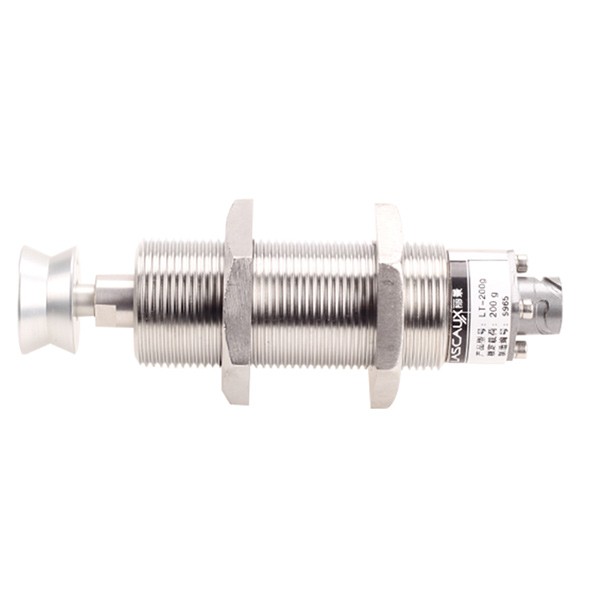

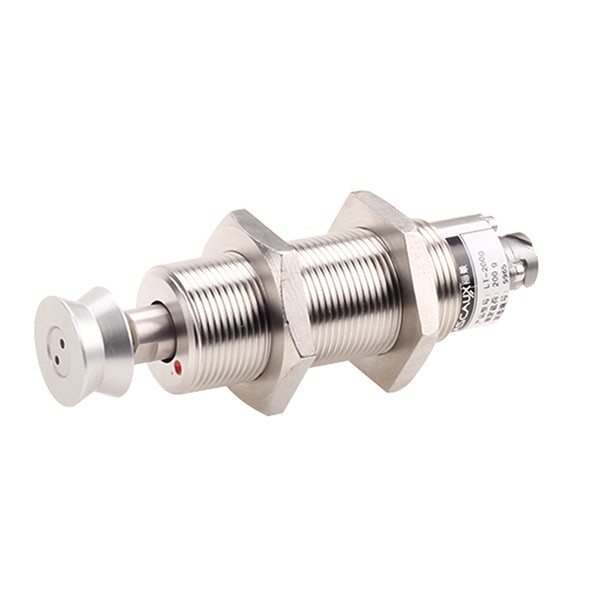

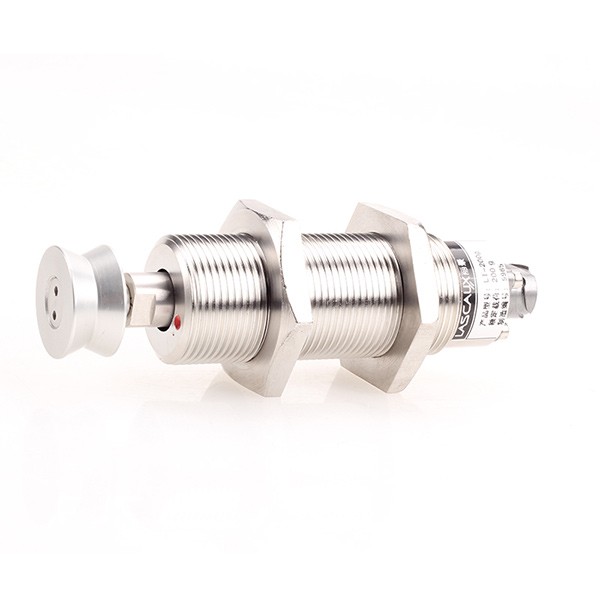

Tension Sensor

Description:

      Model: LT

    Features:


1. Capacities (g): 200 to 2000

2. Resistance strain measurement methods

3. Compact structure, save the space

4. Various installation ways: overlapping style or threaded style

5. Many installations types can satisfy various needs

6. It can accurately measure in the low tension

7. Durable in useHighly optimized for general use

8. Roller is made of Aluminum

Applications:

      Be suitable for measuring the tension of uncoilingcoiling and moving, the object is including electric wires, metal wire, glass fiber, nylon, rubber and composite materials

Specifications:

Rated Load

g

200,500,1000,2000

Rated Output

mV/V

1

Zero Balance

%R.O.

±1

Comprehensive  Error

%R.O.

±0.3

Compensated Temp.   Range

-10~+40

Operating Temp.   Range

-20~+70

Temp. effect/10 on output

%R.O./10

±0.02

Temp. effect/10 on zero

%R.O./10

±0.02

Recommended   Excitation Voltage

VDC

5-12

Maximum  Excitation    Voltage

VDC

15

Input impedance

Ω

380±10

Output impedance

Ω

350±5

Insulation   resistance

≥500050VDC

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

300

Material

AluminumStainless   Steel

Degree of protection

IP65

The length of the   cable

m

3m

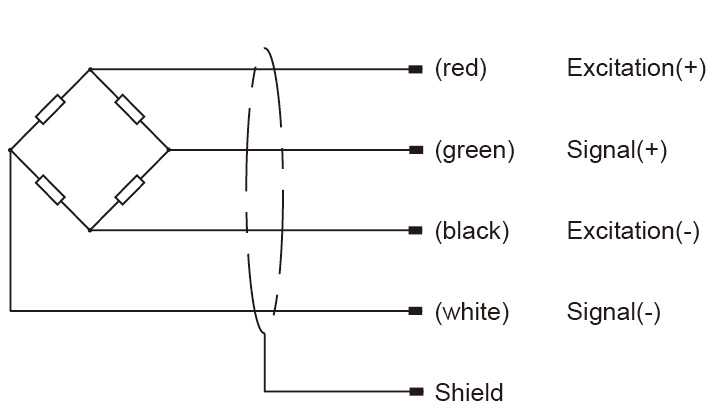

Wiring code

Ex:

Red:+     Black

Sig:

Green:+    White

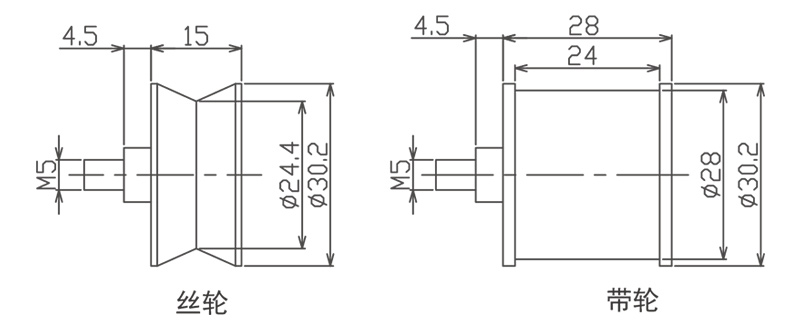

Dimensions(in mm):


Wheel:


Wiring Code
