Low Profile Disk Load Cell

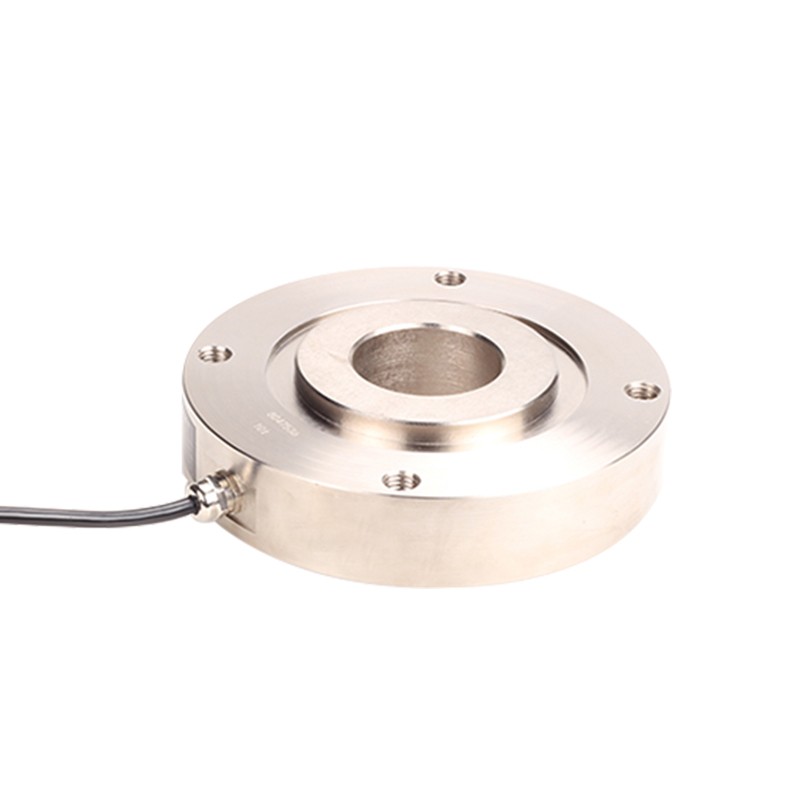

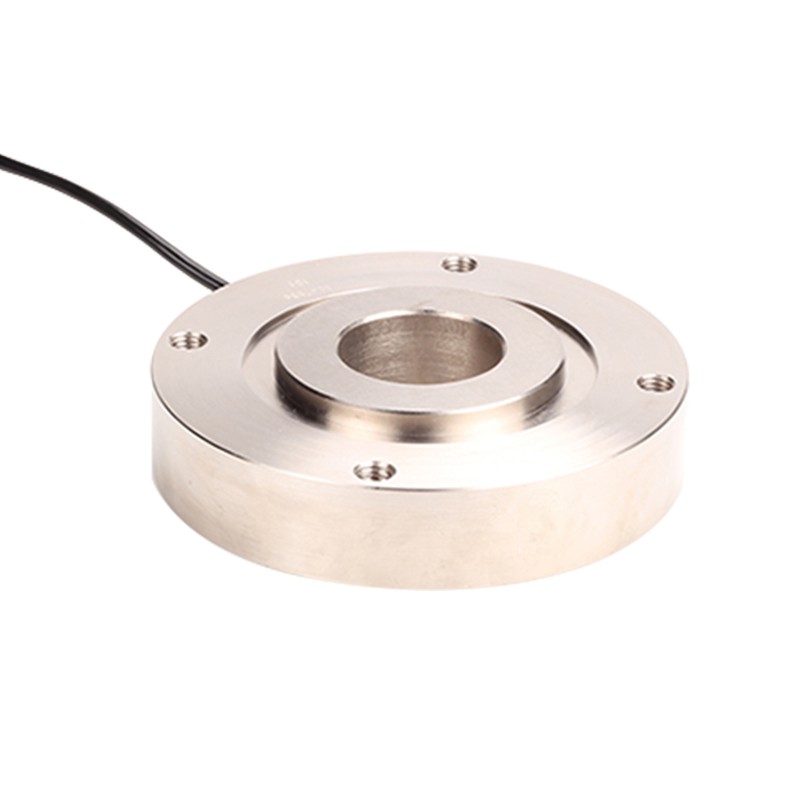

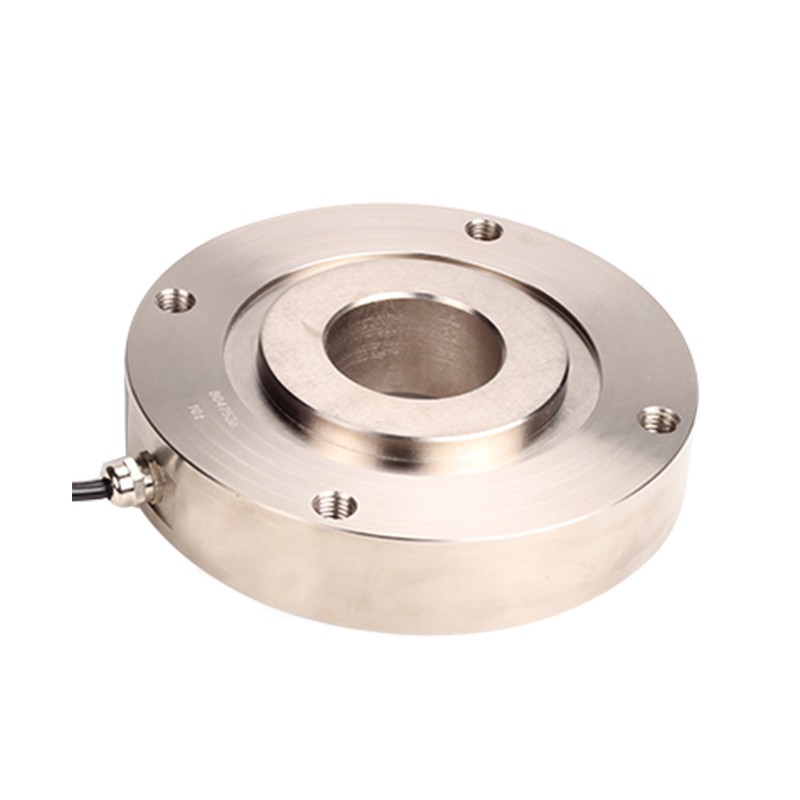

LCD820 Low Profile Disk Load Cell

Description：

Model: LCD820

Features:

1. Capacities (t): 1 to 50

2. Compact structure, easy to install

3. Compression load cell

4. Low profile, spherical designing

5. Alloy steel or Stainless Steel material

6. Degree of Protection reaches to IP66

7. For Static and Dynamic Applications

8. Strain Gauge type transducers

Applications:

Be suitable for a wide range of applications including testing or weighing systems.

Specifications:

Rated Load	t	1,2,5,10,20,50
Rated Output	mV/V	1.2-1.5
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.5
Non-linearity	%R.O.	±0.3
Hysteresis	%R.O.	±0.1
Repeatability	%R.O.	±0.3
Creep/30 minutes	%R.O.	±0.1
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.05
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.05
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP66
The length of the cable	m	5m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

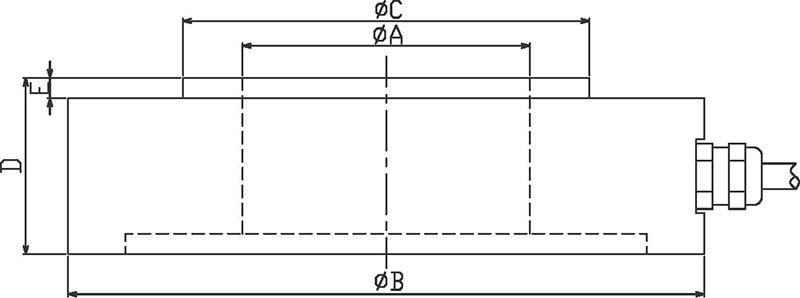

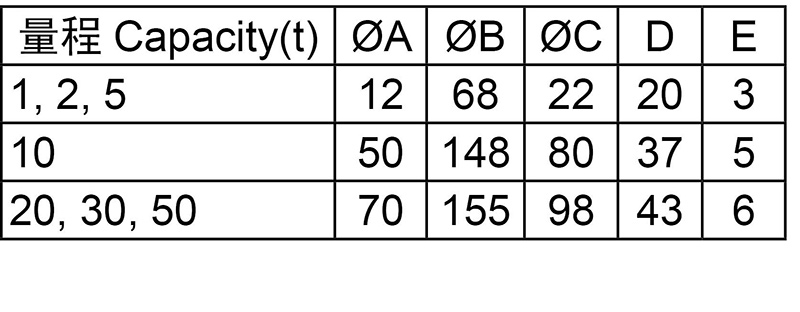

Dimensions(in mm)：

Wiring Code：
