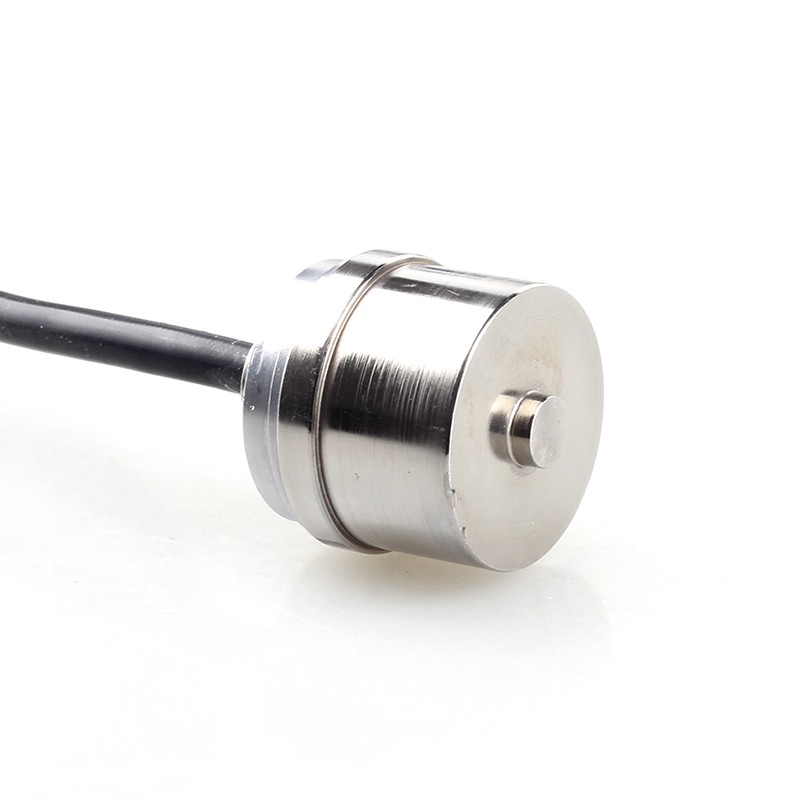

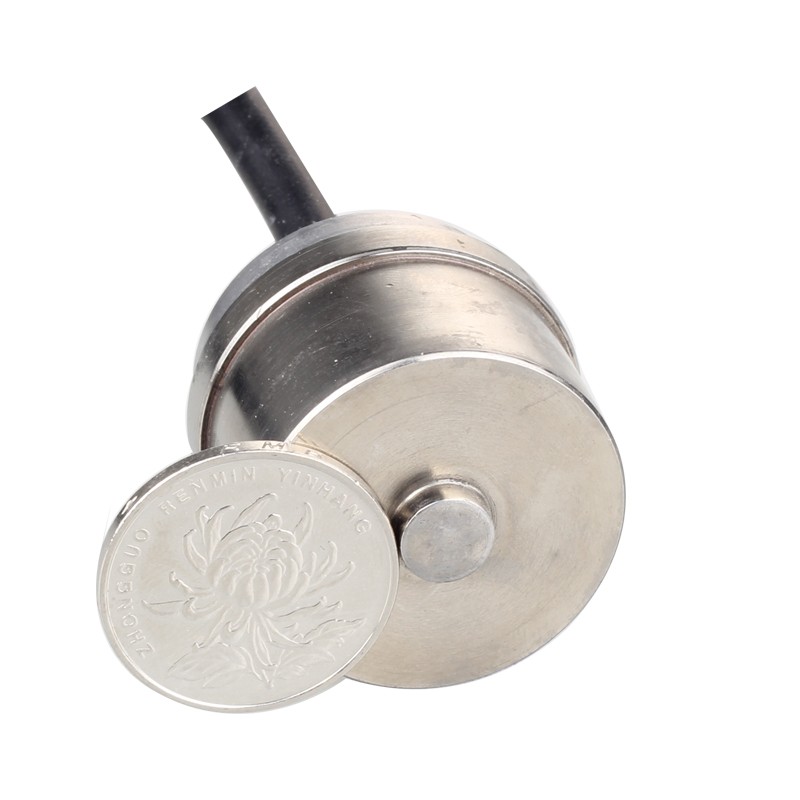

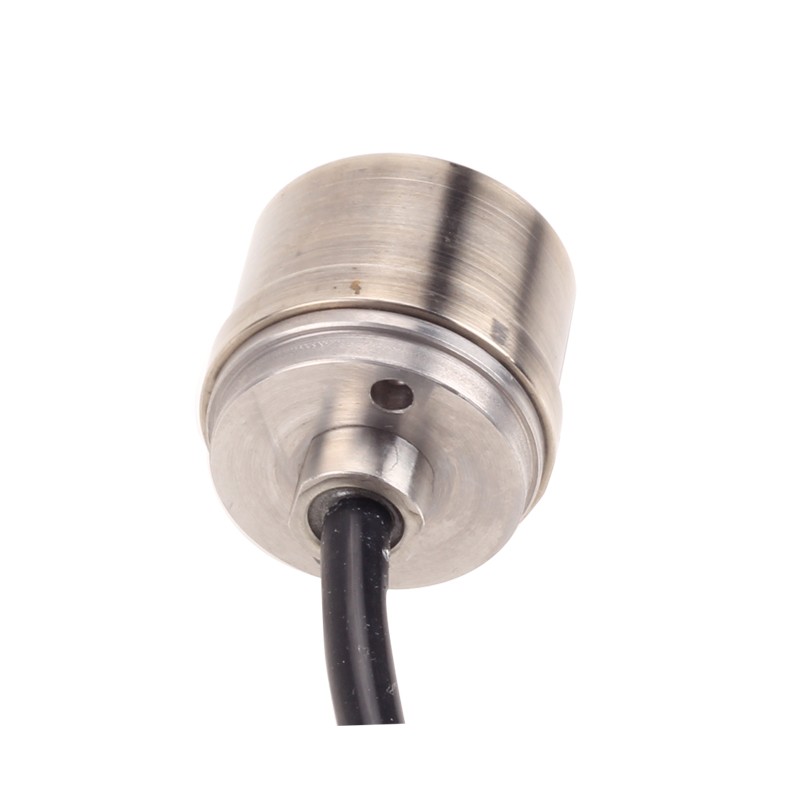

Low Profile Disk Load Cell

LCD806 Low Profile Disk Load Cell

Description：

Model: LD806

Features:

1.Capacities (kg):500 to 3000

2.Compact structure, easy to install

3.High comprehensive precision, high stability

4.Measure the compression

5.Delicate structure, low profile

6.Stainless steel material

7.High temperature resistance

Applications:

Be suitable for a wide range of applications including testing or weighing systems.

Specifications:

Rated Load	t	0.5,1,2,3
Rated Output	mV/V	1.0
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Non-linearity	%R.O.	±0.3
Hysteresis	%R.O.	±0.3
Repeatability	%R.O.	±0.1
Creep/30 minutes	%R.O.	±0.1
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	350±5
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Stainless Steel
Degree of protection		IP68
The length of the cable	m	5
Wiring code	Ex:	Red：＋ Yellow：–
Wiring code	Sig:	Blue：＋ White：–

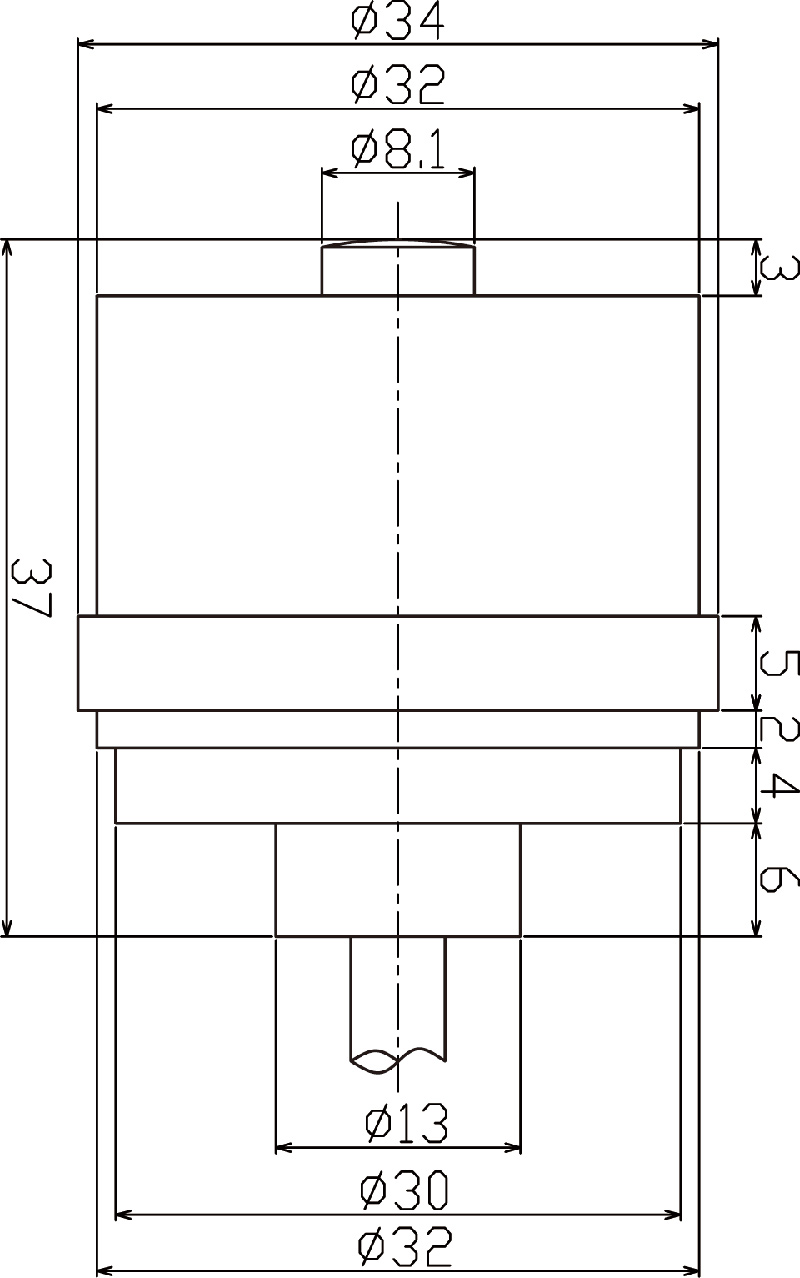

Dimensions(in mm)：

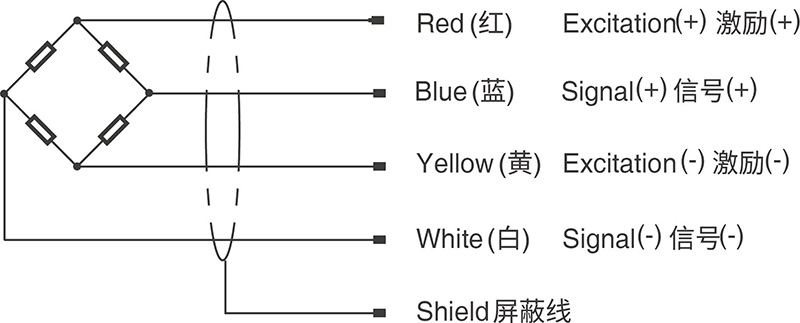

Wiring Code：
