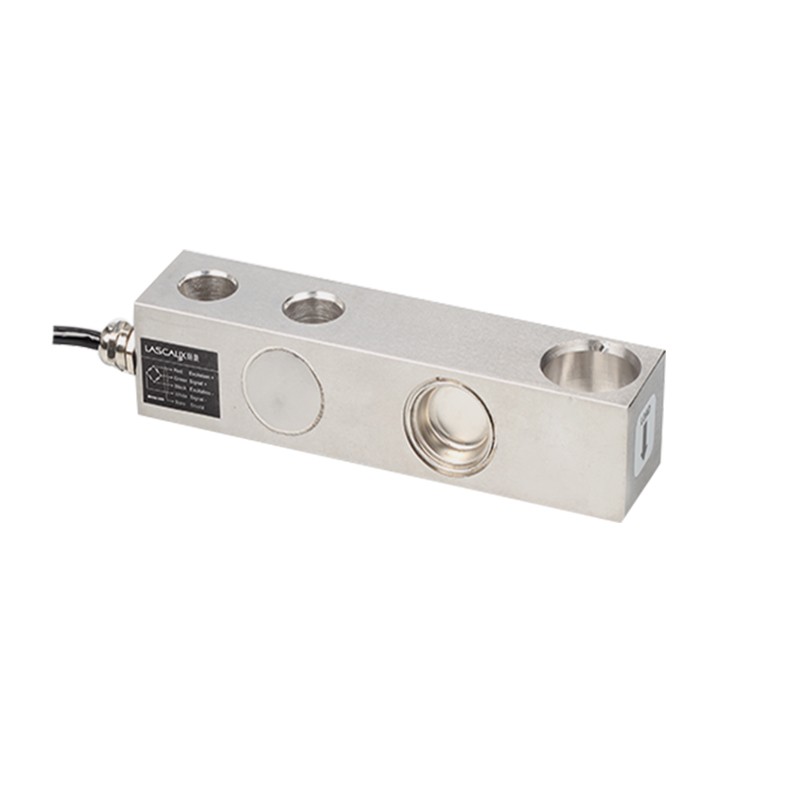

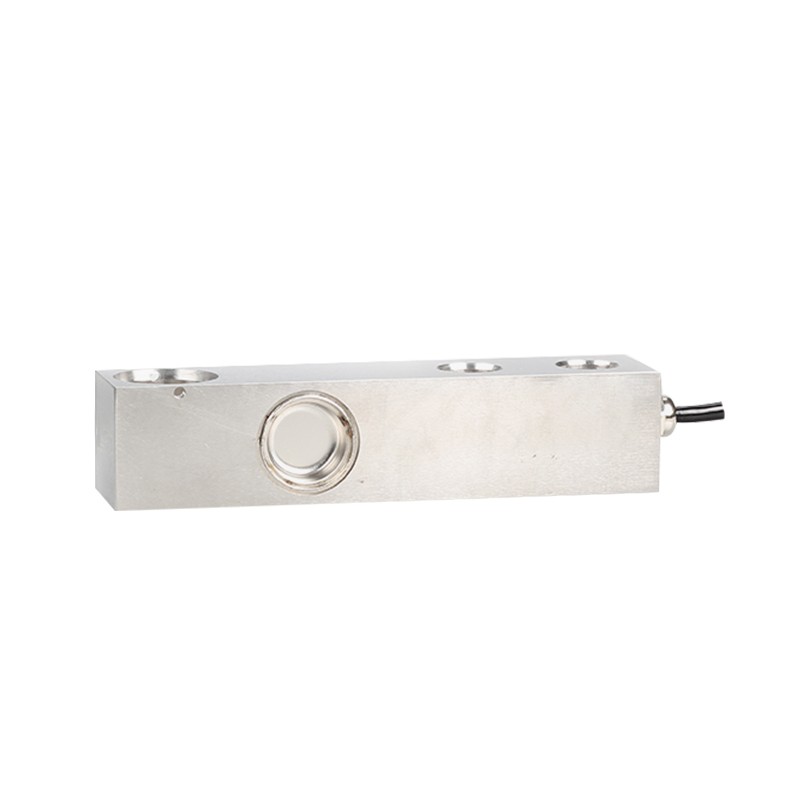

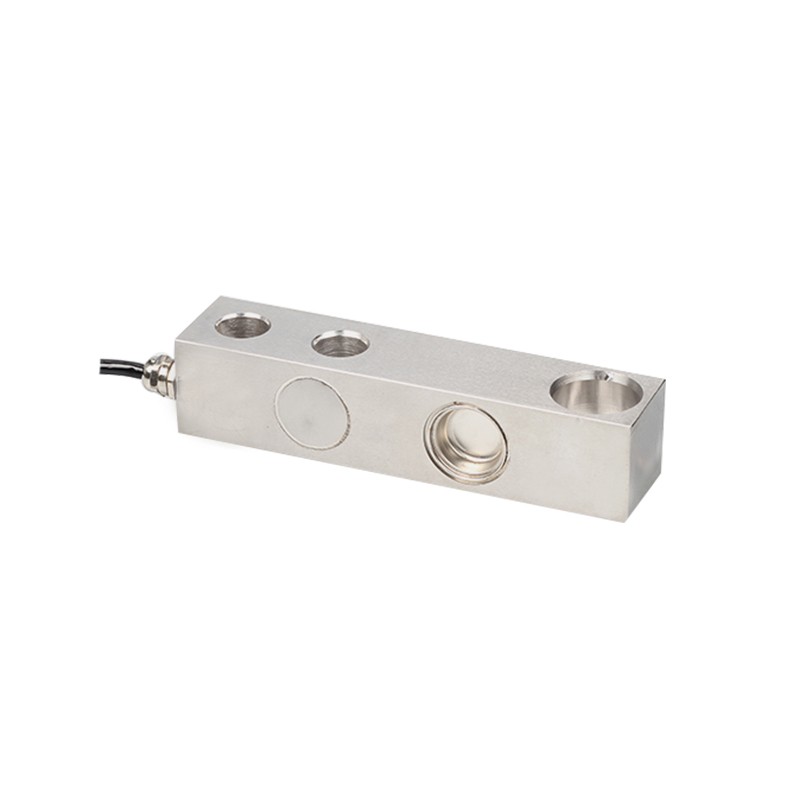

Single Ended Shear Beam Load Cell
SQB_SQB-SS SQB-SS
Description：
Model: SQB-SS
Features:
1. Capacities (t): 0.5 to 5
2. Compact structure, easy to install
3. High comprehensive precision, high stability
4. Stainless Steel material
5. Degree of protection reaches to IP68
6. Module installing
Applications:
Be suitable for the fields of Hopper and tank weighing, belt scales, and other Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.
Specifications:
Rated Load | t | 0.5,1,2,3,5 |
Rated Output | mV/V | 2.0±0.0050 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.02 |
Non-linearity | %R.O. | ±0.02 |
Hysteresis | %R.O. | ±0.02 |
Repeatability | %R.O. | ±0.02 |
Creep/30 minutes | %R.O. | ±0.02 |
Compensated Temp. Range | ℃ | -10~+40 |
Operating Temp. Range | ℃ | -20~+70 |
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 15 |
Input impedance | Ω | 380±10 |
Output impedance | Ω | 350±5 |
Insulation resistance | MΩ | ≥5000（50VDC） |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Stainless Steel | |
Degree of protection | IP68 | |
The length of the cable | m | 0.5-2t:3m 3t-5t:5m |

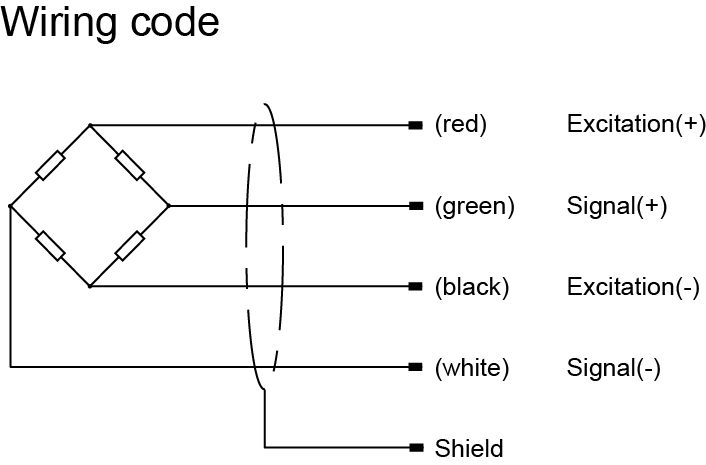

Wiring code | Ex: | Red：＋ Black：– |
Sig: | Green：＋ White：– | |
Tightening torque | N·m | 0.5-2t:98 N·m 3t-5t:275N·m |
Dimensions(in mm)：
