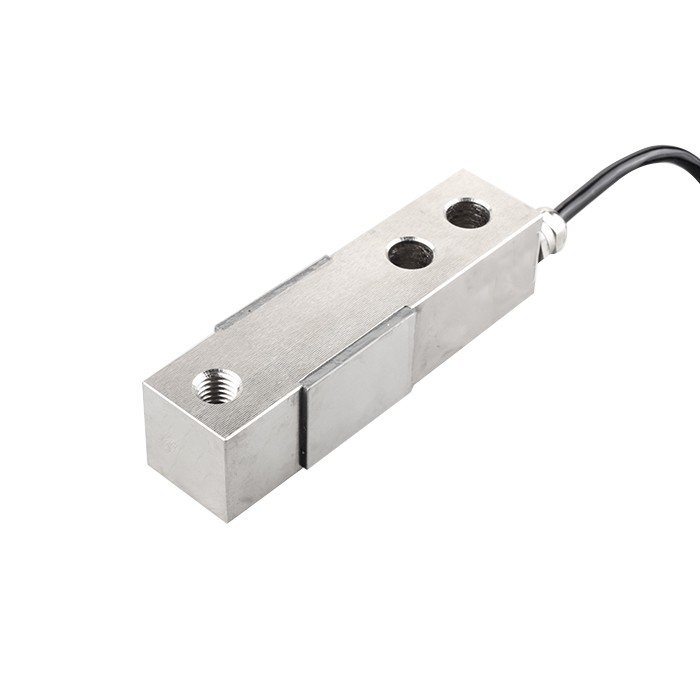

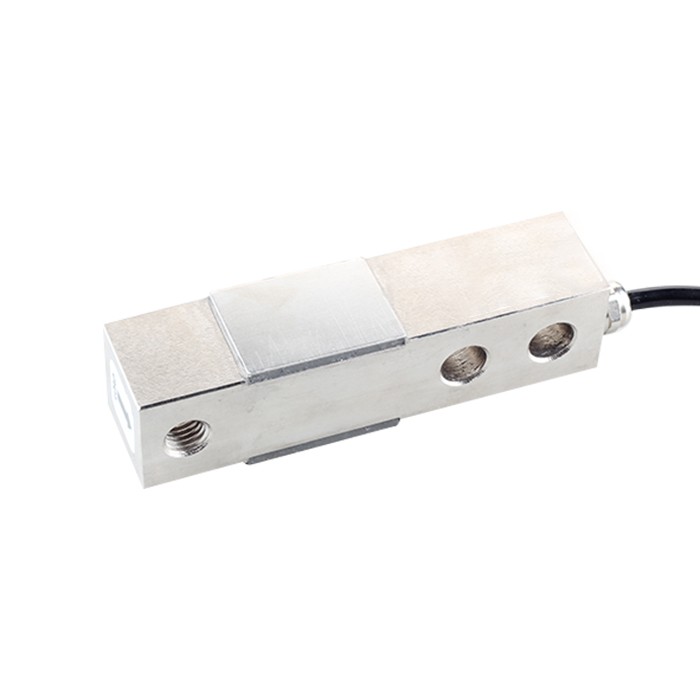

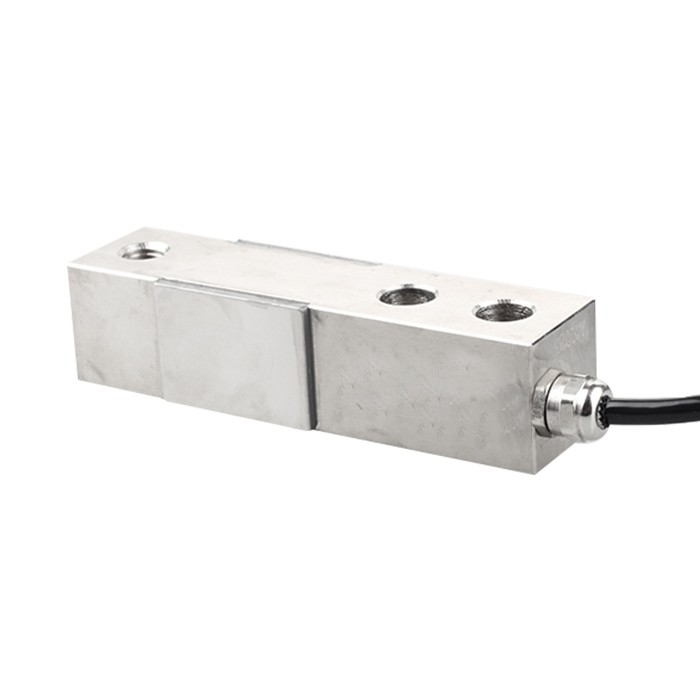

Single Ended Shear Beam Load Cell

  • SQB_SQB-SS  SQB
  • SQB_SQB-SS  SQB
  • SQB_SQB-SS  SQB
SQB_SQB-SS  SQB SQB_SQB-SS  SQB SQB_SQB-SS  SQB

SQB_SQB-SS SQB

Description:

Model: SQB

Features:

1. Capacities (t): 0.1 to 10

2. Compact structure, easy to install

3. High comprehensive precision, high stability

4. High quality alloy steel with nickel plating

5. Degree of protection reaches to IP67

6. Module installing

Applications:

Be suitable for the fields of Hopper and tank weighing, belt scales, and other Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

Specifications:

Rated Load

t

0.1, 0.3, 0.5, 1, 2, 3, 5, 7.5, 10

Rated Output

mV/V

2.0±0.0050

Zero Balance

%R.O.

±1

Comprehensive  Error

%R.O.

±0.02

Non-linearity

%R.O.

±0.02

Hysteresis

%R.O.

±0.02

Repeatability

%R.O.

±0.02

Creep/30 minutes

%R.O.

±0.02

Compensated Temp. Range

-10~+40

Operating Temp. Range

-20~+70

Temp. effect/10 on output

%R.O./10

±0.02

Temp. effect/10 on zero

%R.O./10

±0.02

Recommended Excitation Voltage

VDC

5-12

Maximum  Excitation  Voltage

VDC

15

Input impedance

Ω

380±10

Output impedance

Ω

350±5

Insulation resistance

≥500050VDC

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

300

Material

Alloy Steel

Degree of protection

IP67

The length of the cable

m

0.1-2t:3m 3t-5t:5m 7.5t-10t:6.5m

Wiring code

Ex:

Red:+     Black

Sig:

Green:+    White

Tightening torque

N·m

0.1t-2t:98 N·m  3t-5t:275N·m   7.5t-10t:750N·m

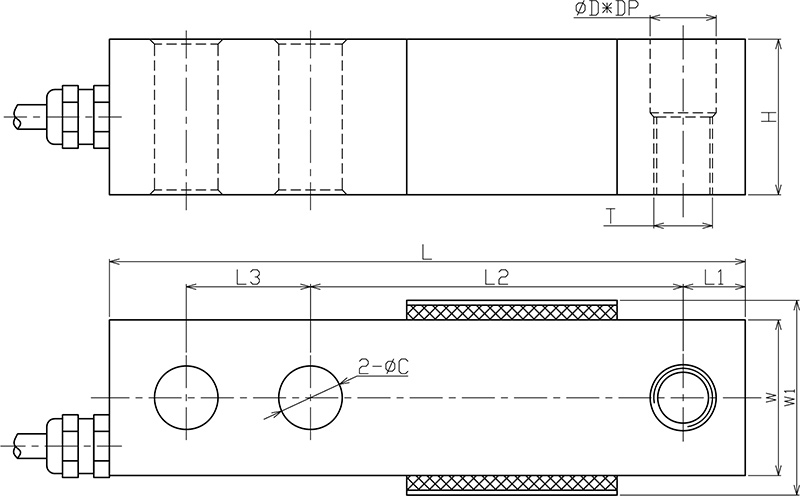

Dimensions(in mm):
