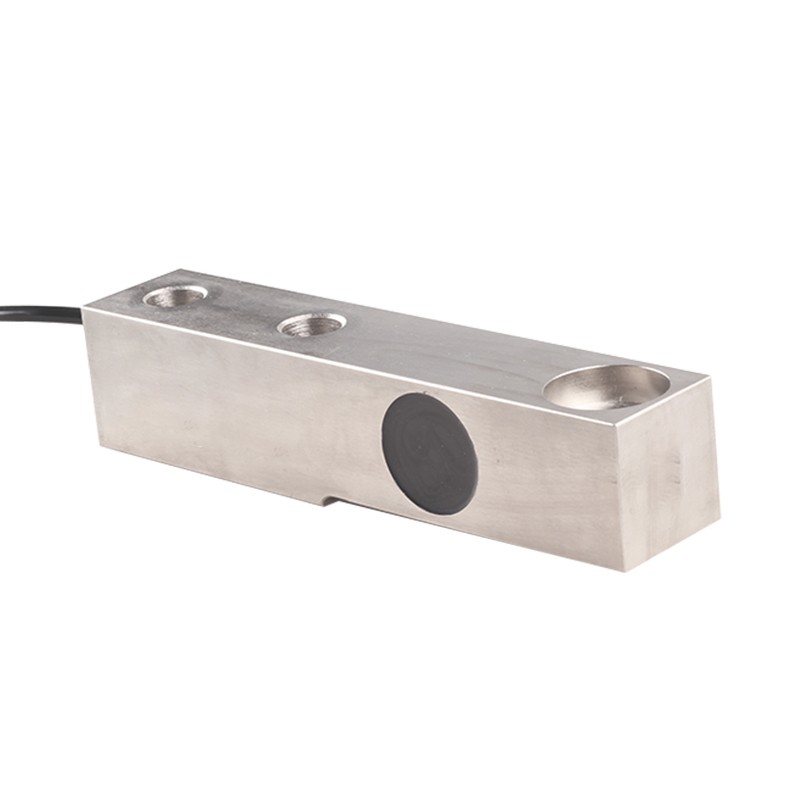

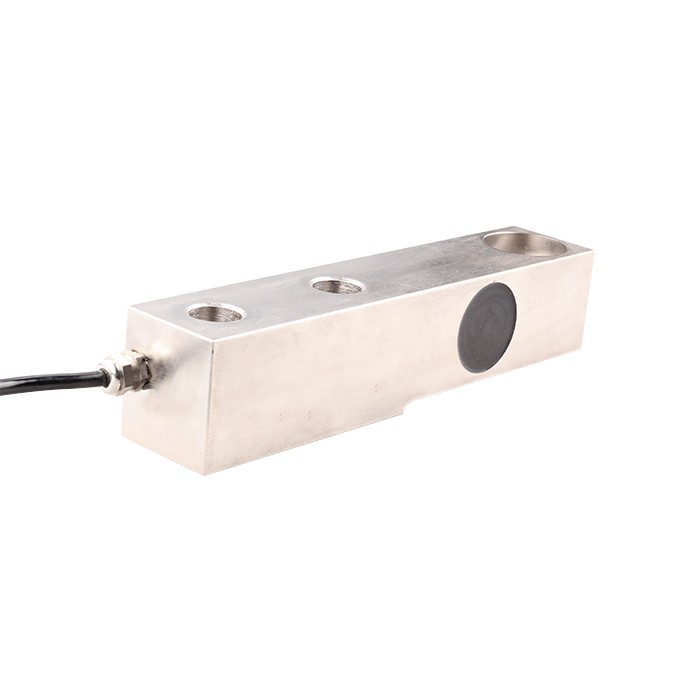

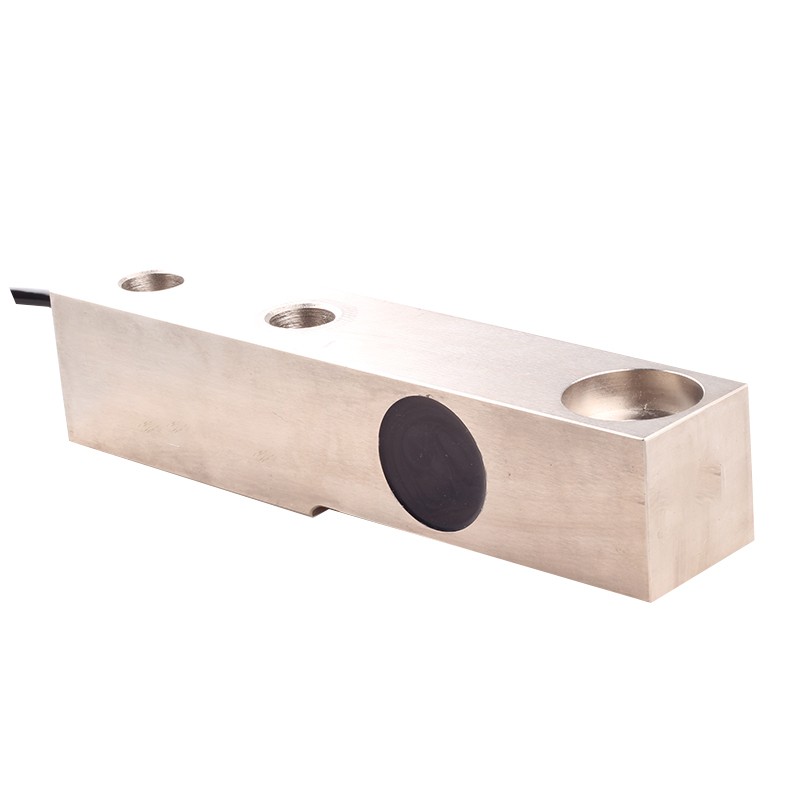

Single Ended Shear Beam Load Cell

  • SB
  • SB
  • SB
SB SB SB

Description:

Model: SB

Features:

1. Capacities (t): 0.5 to 7.5

2. Compact structure, easy to install

3. High comprehensive precision, high stability

4. High quality alloy steel with nickel plating

5. Alloy steel or Stainless steel material

6. Module installing

Applications:

Be suitable for the fields of Ground scales, platform scales, belt scales, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

Specifications:

Rated Load

t

0.5,1,2,3,5,7.5

Rated Output

mV/V

2.0±0.0050

Zero Balance

%R.O.

±1

Comprehensive  Error

%R.O.

±0.02

Non-linearity

%R.O.

±0.02

Hysteresis

%R.O.

±0.02

Repeatability

%R.O.

±0.02

Creep/30 minutes

%R.O.

±0.02

Compensated Temp. Range

-10~+40

Operating Temp. Range

-20~+70

Temp. effect/10 on output

%R.O./10

±0.02

Temp. effect/10 on zero

%R.O./10

±0.02

Recommended Excitation Voltage

VDC

5-12

Maximum  Excitation  Voltage

VDC

15

Input impedance

Ω

380±10

Output impedance

Ω

350±5

Insulation resistance

≥500050VDC

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

300

Material


Alloy Steel

Degree of protection


IP67

The length of the cable

m

0.5-3t:4m 5t:5m 7.5t:6m

Wiring code

Ex:

Red:     Black:–

Sig:

Green:    White:–

Tightening torque

N·m

0.5-2t:98 N·m    3t:160N·m

5t:225 N·m    7.5t:1255 N·m

Dimensions(in mm):
