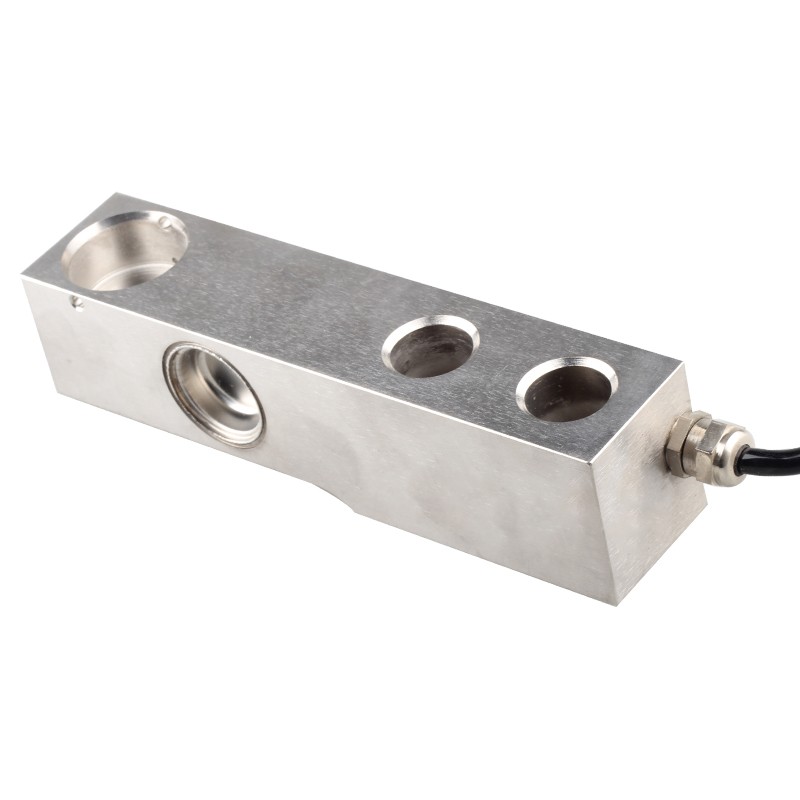

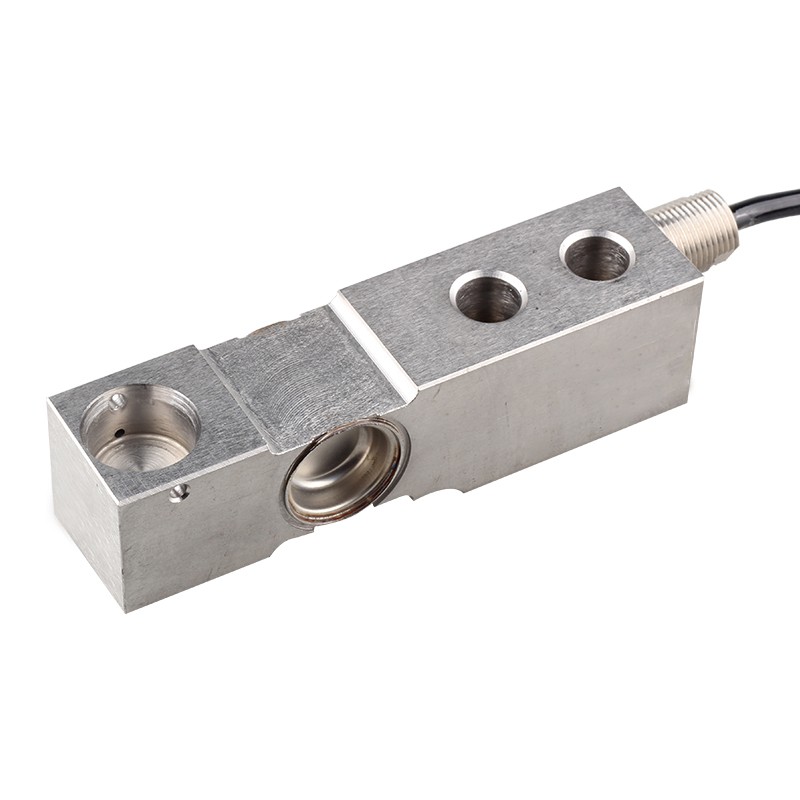

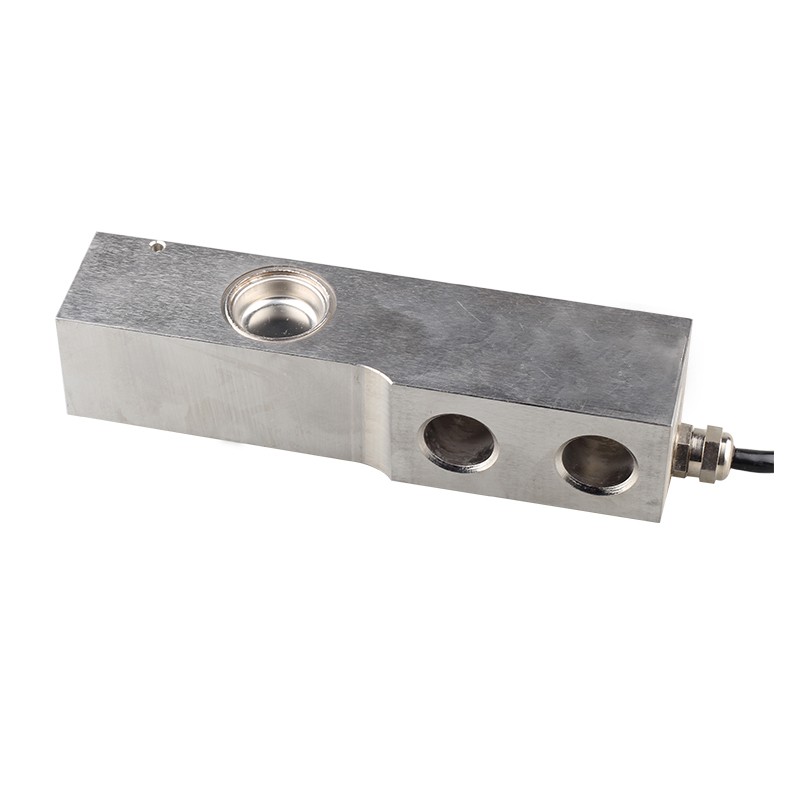

Single Ended Shear Beam Load Cell

  • SBC_SBC-SS
  • SBC_SBC-SS
  • SBC_SBC-SS
SBC_SBC-SS SBC_SBC-SS SBC_SBC-SS

SBC_SBC-SS

Description:

Model: SBC/SBC-SS

Features:

1. Capacities (t): 0.5 to 5

2. Compact structure, easy to install

3. High comprehensive precision, high stability

4. High quality alloy steel with nickel plating

5. Alloy steel or Stainless Steel material

6. Degree of protection reaches to IP68

7. Module installing

Applications:

Be suitable for the fields of Hopper and tank weighing, belt scales, and other Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

Specifications:

Rated Load

t

0.5,1,2,3,5

Rated Output

mV/V

2.0±0.0050

Zero Balance

%R.O.

±1

Comprehensive  Error

%R.O.

±0.02

Non-linearity

%R.O.

±0.02

Hysteresis

%R.O.

±0.02

Repeatability

%R.O.

±0.02

Creep/30 minutes

%R.O.

±0.02

Compensated Temp. Range

-10~+40

Operating Temp. Range

-20~+70

Temp. effect/10 on output

%R.O./10

±0.02

Temp. effect/10 on zero

%R.O./10

±0.02

Recommended Excitation Voltage

VDC

5-12

Maximum  Excitation  Voltage

VDC

15

Input impedance

Ω

380±10

Output impedance

Ω

350±5

Insulation resistance

≥500050VDC

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

300

Material

Alloy Steel or Stainless Steel

Degree of protection

IP67/IP68

The length of the cable

m

0.5-3t:3m 3t-5t:5m

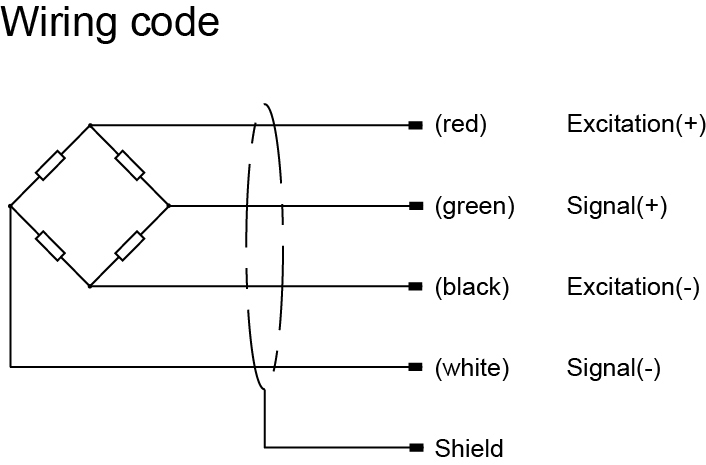

Wiring code

Ex:

Red:+     Black

Sig:

Green:+    White

Tightening torque

N·m

0.5-2t:98 N·m  3t-5t:275N·m

Dimensions(in mm):

1-2003121A625C9.jpg  1-2003121A630492.jpg
