How to choose a yarn tension meter and yarn tensiometer suitable for measuring yarn tension?


Yarn tension meter are measuring instruments used to measure yarn tension. Technical personnel working in the textile industry often encounter the problem of measuring yarn tension. Since tension meters are professional tools and are divided into many types and models, choosing a suitable yarn tension meter is still difficult for people who are not familiar with such equipment.

This article mainly introduces how to choose such instruments.

1. How to determine the range of yarn tension meter. If the process requires the yarn tension value, then select the range of the yarn tension meter according to twice the yarn tension required by the process. Timely 102g, but there is no 102g range of tension meter, you can take the nearest principle, choose a 100g tension meter, such as yarn tension meter NTS series. Model NTS-100 from Shenyang Betten Technology Co., Ltd.

2. What type of yarn tension meter to choose? Tension meters are divided into many types. Different equipment must use different types of tension meters to improve work efficiency and make measurement convenient and accurate. Yarn tension measurement is basically divided into two types, one is similar to the winder Yang,  the yarn is vertical from top to bottom. This requires a long rod type yarn tension meter . For example, the NTS series produced by Betten Technology Co., Ltd. is a long rod type. There is also a yarn tension meter and for circular machines. It is convenient to measure with a tension meter similar to a pistol type. Betten  Technology Co., Ltd. will soon develop a yarn tension meter and yarn tensiometer suitable for circular machines.

Model NTS


Tension range

Measuring head   width

Calibration   materials (Polyamide Monofilament)


0.3-50.0 cN




1.0-100.0 cN




2.0-200. cN




5-500 cN



Unit conversion: 1cN = 1.02g

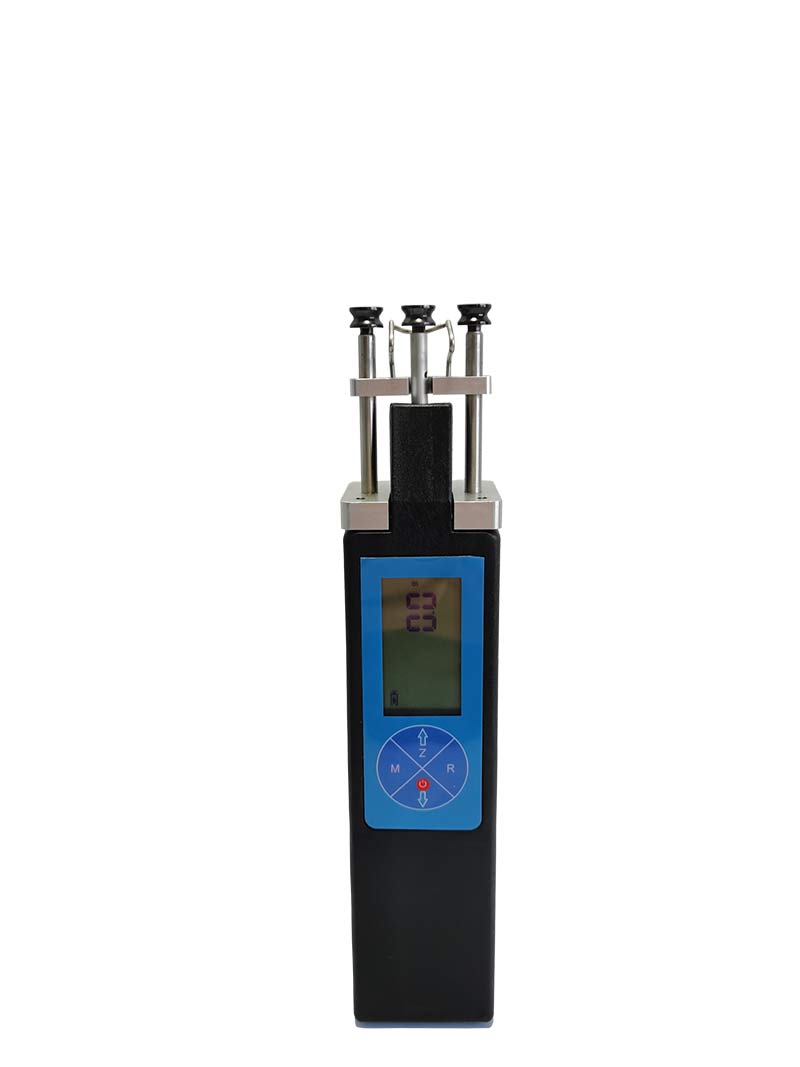

The betten brand yarn tensiometer is equipped with three wheels, equipped with an auto-zero function, and an electronic damping system. Can completely eliminate self-vibration and resistance caused by the instrument itself, increasing the reliability of test results. The tension can be measured conveniently and quickly in a dynamic state.

Key words: Yarn Tensiometer and Yarn Tension meter

Description: Yarn Tensiometer and Yarn Tension meter are suitable for all kinds of yarns, ropes, and ribbon materials. Digital yarn tension meter can detect the yarn tension and change of tension during spinning. Need to indicate the required range.
