Why does the wire tension meter need hardness compensation to measure the tension of different wires


For the metal wire thicker than 0.2mm, there are three points to pay attention to when selecting a wire tension meter. The first is to choose a wire tension meter with a wire diameter compensation function to compensate for the measurement errors caused by different wire diameters. The second is to choose a wire tension meter with automatic zero-clearing function. The third is to choose a wire tension meter with hardness compensation. When the thick metal wire passes through the guide wheel of the tension measuring instrument, its own hardness will produce a certain error, so choose a tension measuring instrument with hardness compensation.

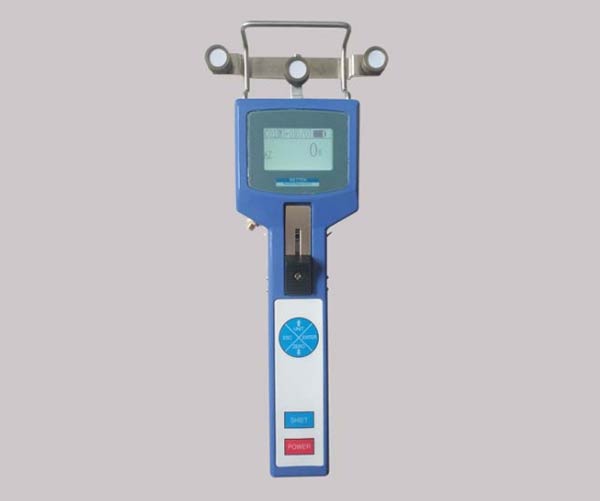

The NT series wire tension meter produced by Betten Technology Company have digital display, automatic clearing function, and wire diameter compensation. It can meet the tension measurement requirements of wires.

Model NT


Model

Tension range

Measuring head   width

Diameter range

Calibration   materials (Polyamide Monofilament)

wire diameter   compensation

NT-200

2.0-200.0 cN

65mm

0.05-0.30mm

φ0.12mm

yes

NT-500

5.0-500.0 cN

65mm

0.05-0.3mm

φ0.12mm+φ0.2mm

yes

NT-1000

10-1000 cN

65mm

0.1-0.5mm

φ0.2mm+φ0.4mm

yes

NT-2000

20-2000 cN

116mm

0.3-0.7mm

φ0.4mm+φ0.7mm

yes

NT-2500

25-2500 cN

116mm

0.3-0.7mm

φ0.4mm+φ0.7mm

yes

NT-5000

50-5000 cN

116mm

0.4-1.0mm

φ0.7mm+φ1.2mm

yes

NT-10K

0.1-10.0daN

116mm

0.7-1.2mm

φ0.8mm+φ1.0mm

yes

NT-20K-F

0.2-20.0daN

116mm

1.0-1.8mm

φ1.2mm

yes

NT-30K-F

0.3-30.0daN

216mm

Customer specified wire diameter range

Customer specified materials

yes

NT-50K-F

0.5-50.0daN

216mm

Customer specified wire diameter range

Customer specified materials

yes

NT-60K-F

0.6-60.0daN

216mm

Customer specified wire diameter range

Customer specified materials

yes

NT-100K-F

1-100daN

216mm

Customer specified wire diameter range

Customer specified materials

yes

Unit conversion: 1daN = 10N = 1.02kg 1cN = 1.02g


Specifications:

Accuracy :  (factory calibration material) 1% full scale (FS), (other materials) 3% FS.

Display update frequency :   0.5 seconds

Optional units:   gf, cN, N, kgf, daN, LB (switchable units are different for different ranges)

Adjustable range: The displayed value can be adjusted within ± 10 steps of 1% of full scale according to the site requirements

Line speed:   1000m / min

Stored value:   Maximum, minimum, maximum peak, minimum peak, average

Display :  Dot-matrix LCD

Shell size:  76 × 46 × 275mm

Power : Lithium-ion rechargeable battery, continuous working for about 60 hours

Operating temperature : 10-45 ° C, 90% relative humidity or less

Accessories :  Instrument, instruction manual, certificate, charger, instrument box
