Digital yarn tension meter single yarn tension meter

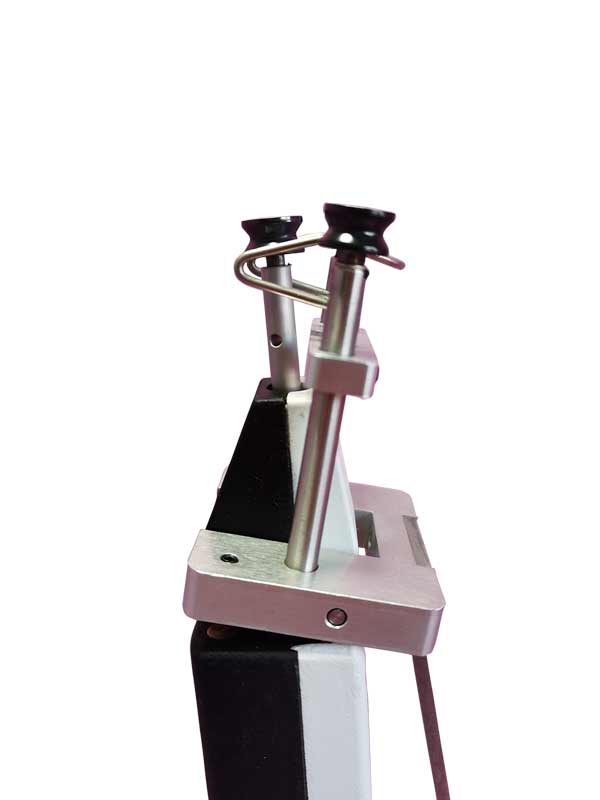

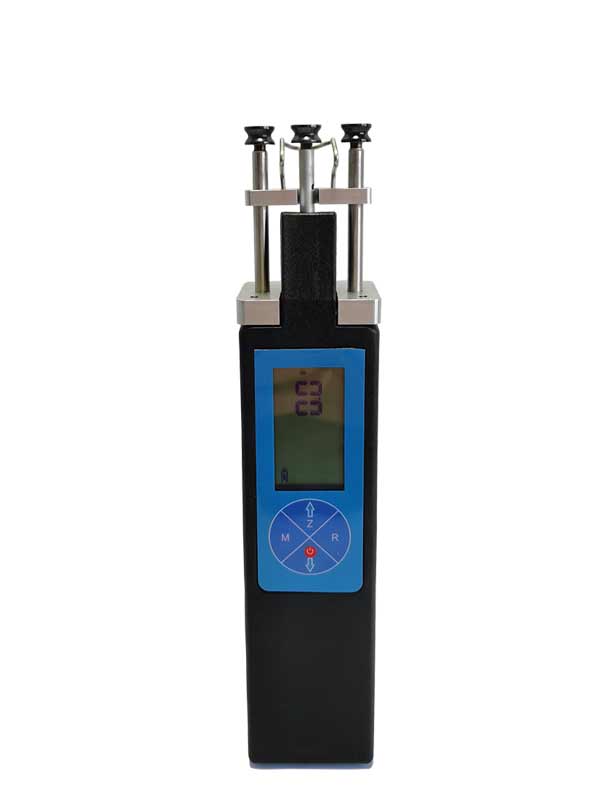

Description: digital wire tension meter is a portable instrument for measuring the dynamic tension of various yarns, digital wire tension guage is equipped with a digital display device and a movable yarn clamping device, which is very simple and convenient to use. It is widely used in various spinning machines, stretching machines, deforming machines, twisting machines, winders, warping machines, circular loom, towel machines, and ribbon machines.

Model NTS

Unit conversion: 1cN = 1.02g

Specifications:

Accuracy :             (calibration material) ± 1% of full scale (FS), (other materials) ± 3% of full scale (FS)

Display update frequency 0.5 seconds

Optional unit           g, cN

Line speed NTS         900m / min

Stored value           Maximum, minimum, average

Display               LCD

Case size              225X45 X 30 mm

Power                Li-ion rechargeable battery, continuous working for about 60 hours

Operating temperature    10-45 ° C, 90% relative humidity or less

Shipment include         tension meter, instruction manual, certificate, charger, instrument box

Scope of application Tension measurement of yarn, chemical fiber, fine metal wire in textile, chemical fiber, wire and cable industry
