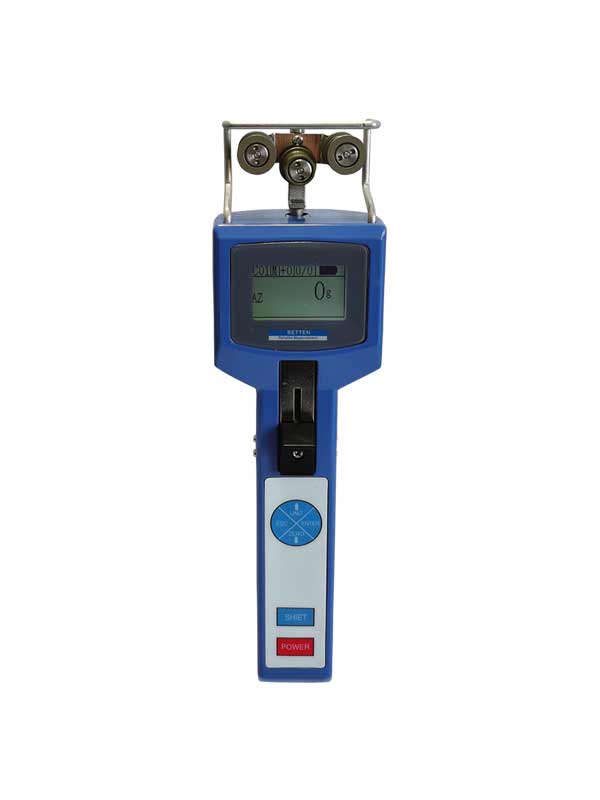

Handheld tensiometer hand held tension meter

The handheld tensiometer and hand held tension meter are used for the static and dynamic tension detection of various wool, linen, silk, chemical fiber and metal wire drawing, glass fiber and optical fiber products, and provides a reliable basis for improving the quality of yarn and product performance.

The handheld tensiometer and hand held tension meter are used for the measurement of the dynamic tension of various flexible wires. It is equipped with a digital display device and a movable yarn clamping device, which can be carried for detection.

The handheld tensiometer and hand held tension meter features: high measurement accuracy, good stability, small size, simple operation, automatic zero tracking, full-scale automatic calibration, overload protection, low voltage display, and can display the maximum, minimum and average values in each test .

1. Range: 0-100cN file 0-200cN file, measuring principle: strain bridge

2. Overload protection: 200%

3. Temperature range: 10 ～ 45 ℃

4. Unit: centigrade (100cN = 1N)

5. Measuring wheel offset: 0.5mm

6. Accuracy: ± 1% FS or ± 1 number

8. Signal processing: digital, 10-bit analog-to-digital converter

9. Damping: adjustable electronic damping (3 levels), moving average

10. Sampling rate: about 1k HZ (internal frequency of the instrument)

11. Display refresh rate: about 2 times / second

Key words : The handheld tensiometer ,hand held tension meter

Description: The handheld tensiometer and hand held tension meter are used for the static and dynamic tension detection of various wool, linen, silk, chemical fiber and metal wire drawing, glass fiber and optical fiber products, and provides a reliable basis for improving the quality of yarn and product performance.
