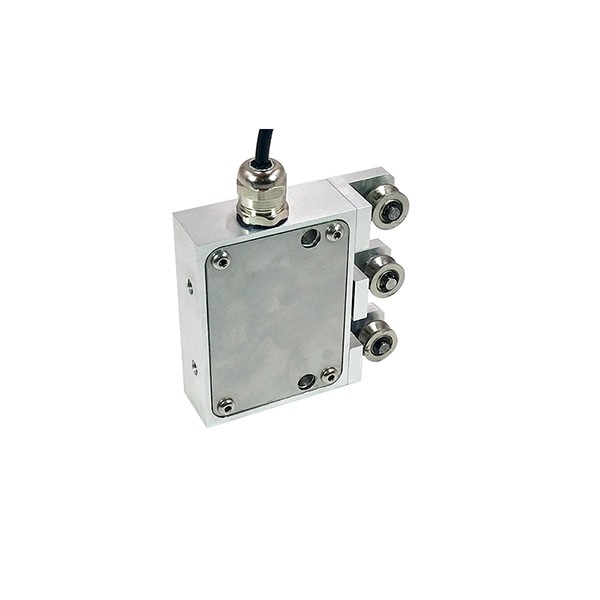

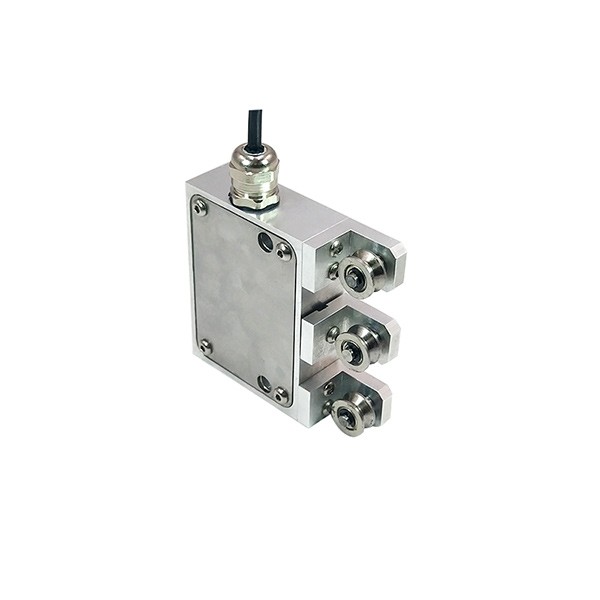

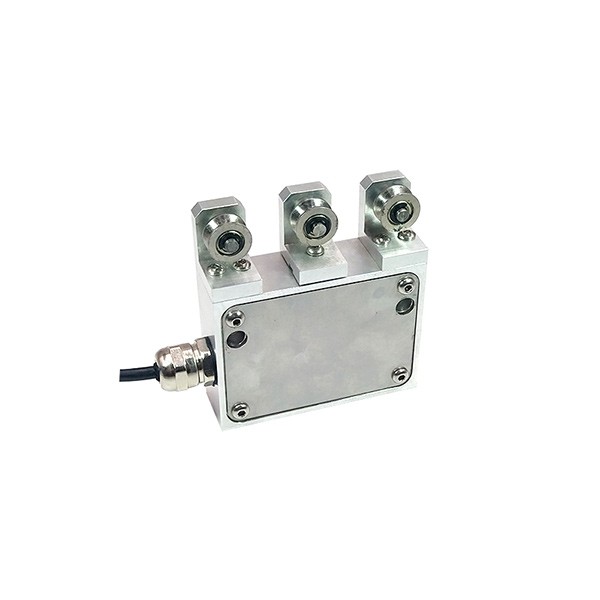

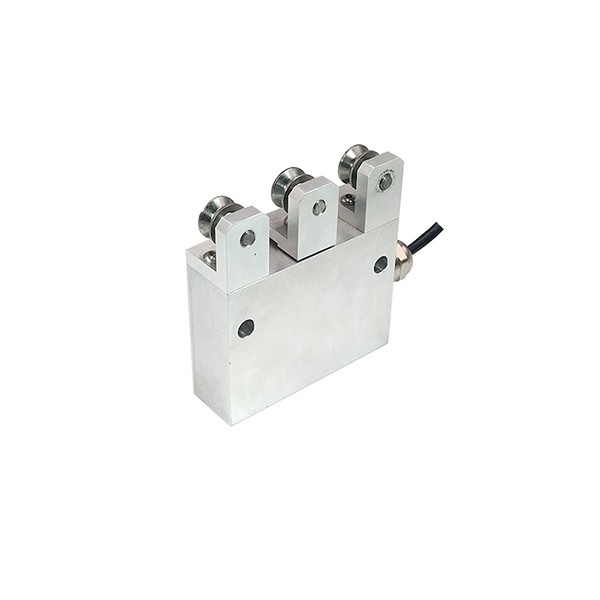

Tension Sensor

Description:

      Model: TS

      Features:

1. Capacities (kg): 0.5 to 3

2. Resistance strain measurement methods

3. Compact structure, save the space

4. Three-roller measuring structure can realize the real-time monitoring of dynamic tension

5. It can arrange in parallel, forming a tension detection array

Applications:

      Be suitable for on-line tension measurement, such as rope, fiber, electric wires, metal wire and other similar products.

Specifications:


Rated Load

kg

0.5,1,2,3

Rated Output

mV/V

1

Zero Balance

%R.O.

±1

Comprehensive  Error

%R.O.

±0.3

Repeatability

%R.O.

±0.1

Non-linearity

%R.O.

±0.3

Compensated Temp.   Range

-10~+40

Operating Temp.   Range

-20~+70

Temp. effect/10 on output

%R.O./10

±0.02

Temp. effect/10 on zero

%R.O./10

±0.02

Recommended   Excitation Voltage

VDC

5-12

Maximum  Excitation    Voltage

VDC

15

Input impedance

Ω

350±5

Output impedance

Ω

350±3

Insulation   resistance

≥500050VDC

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

300

Material

AluminumStainless   Steel Shell

The length of the   cable

m

3m

Wiring code

Ex:

Red:+     Black

Sig:

Green:+    White

Dimensions(in mm):




Wiring Code
