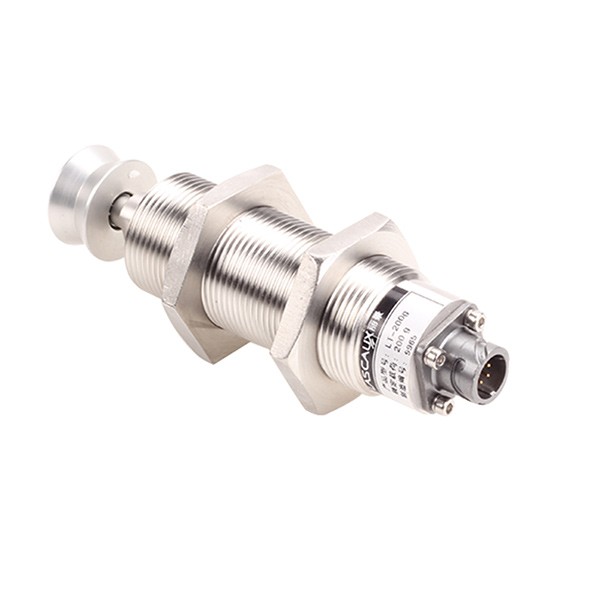

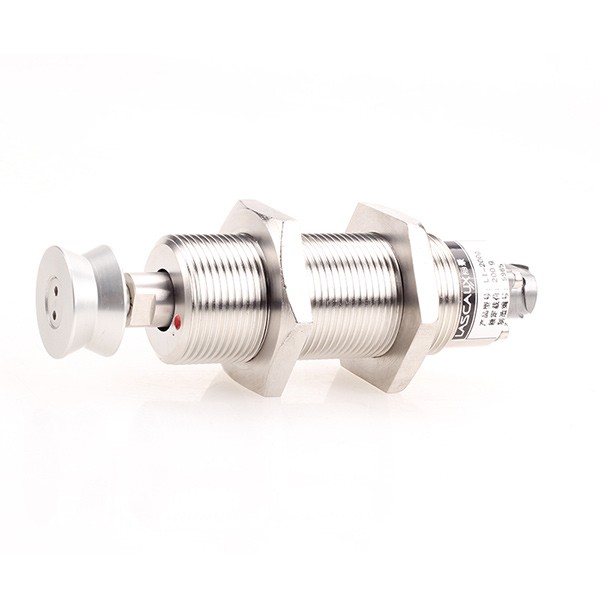

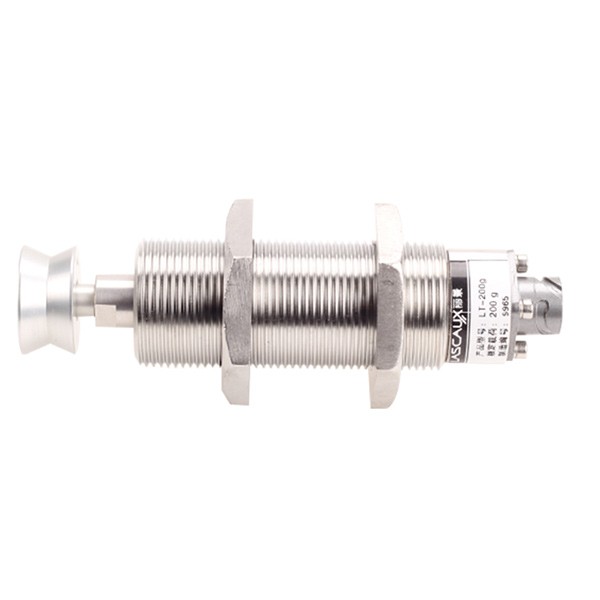

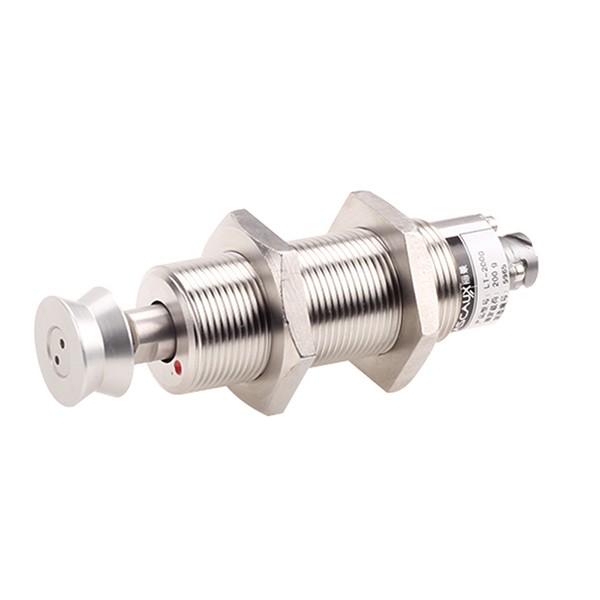

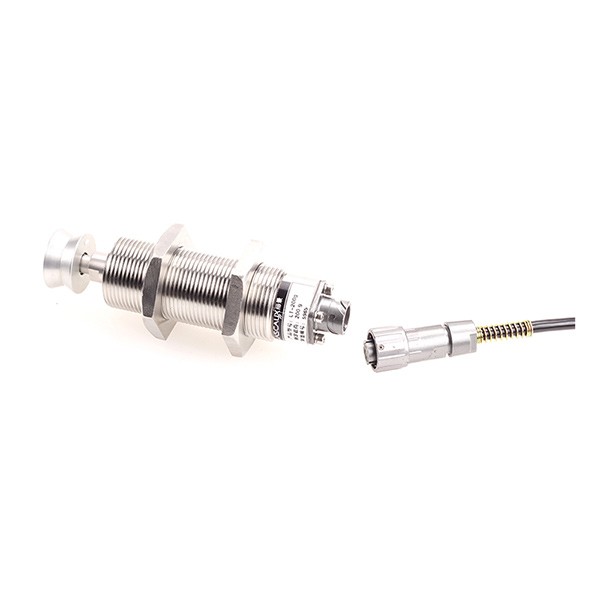

LT
Tension Sensor
Description:
Model: LT
1. Capacities (g): 200 to 2000
2. Resistance strain measurement methods
3. Compact structure, save the space
4. Various installation ways: overlapping style or threaded style
5. Many installations types can satisfy various needs
6. It can accurately measure in the low tension
7. Durable in use，Highly optimized for general use
8. Roller is made of Aluminum
Applications:
Be suitable for measuring the tension of uncoiling、coiling and moving, the object is including electric wires, metal wire, glass fiber, nylon, rubber and composite materials
Specifications:
|
Rated Load |
g |
200,500,1000,2000 |
|
Rated Output |
mV/V |
1 |
|
Zero Balance |
%R.O. |
±1 |
|
Comprehensive Error |
%R.O. |
±0.3 |
|
Compensated Temp. Range |
℃ |
-10~+40 |
|
Operating Temp. Range |
℃ |
-20~+70 |
|
Temp. effect/10℃ on output |
%R.O./10 ℃ |
±0.02 |
|
Temp. effect/10℃ on zero |
%R.O./10 ℃ |
±0.02 |
|
Recommended Excitation Voltage |
VDC |
5-12 |
|
Maximum Excitation Voltage |
VDC |
15 |
|
Input impedance |
Ω |
380±10 |
|
Output impedance |
Ω |
350±5 |
|
Insulation resistance |
MΩ |
|
|
Safe Overload |
%R.C. |
150 |
|
Ultimate Overload |
%R.C. |
300 |
|
Material |
Aluminum、Stainless Steel |
|
|
Degree of protection |
IP65 |
|
|
The length of the cable |
m |
3m |
|
Wiring code |
Ex: |
Red：＋ Black：– |
|
Sig: |
Green：＋ White：– |

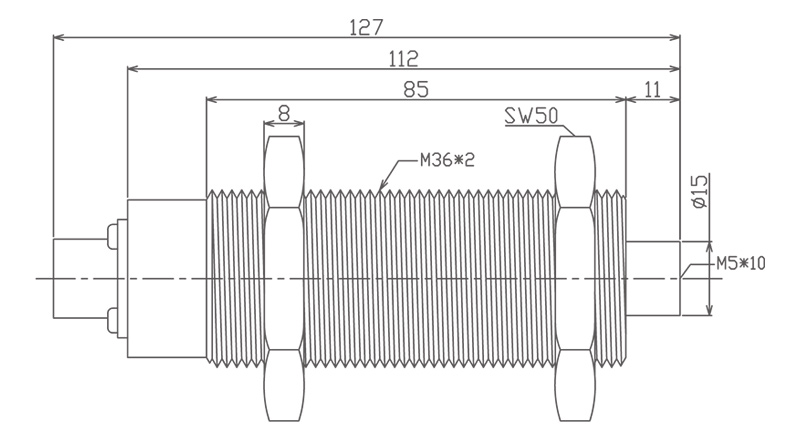

Dimensions(in mm)：

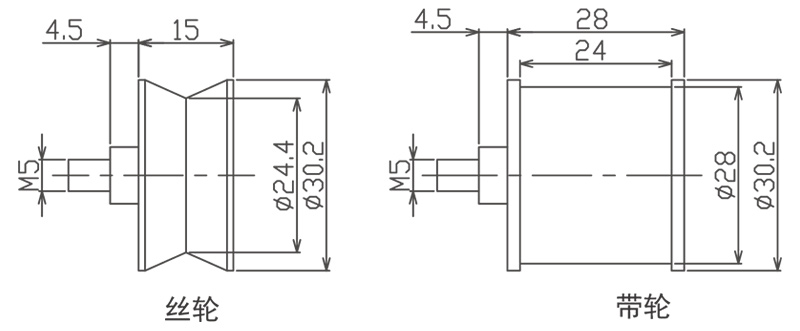

Wheel:

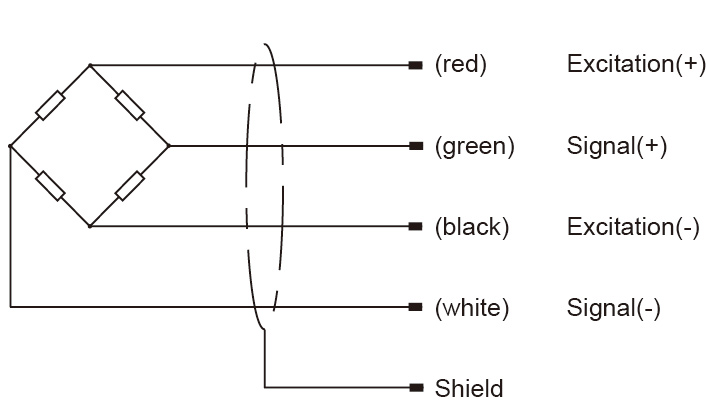

Wiring Code：
