SK

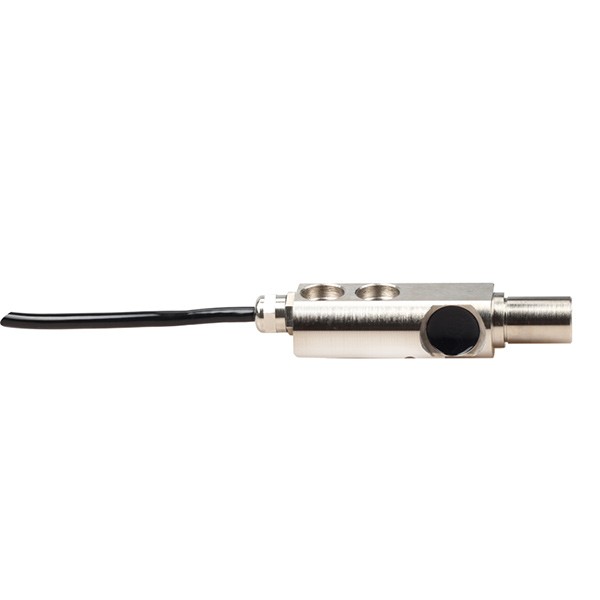

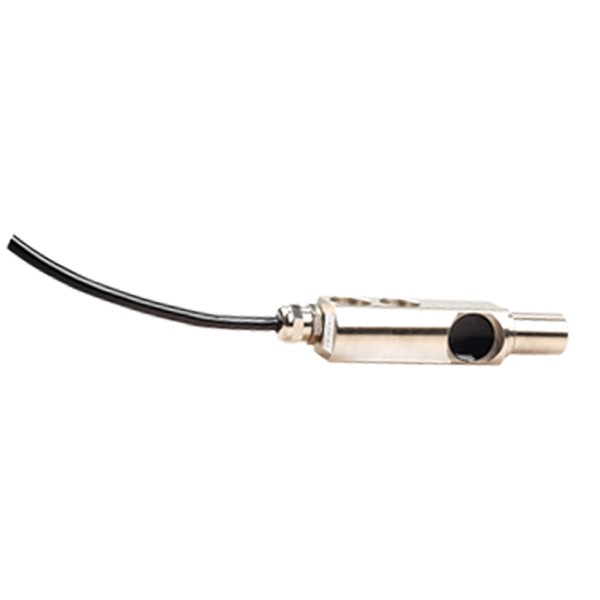

Tension Sensor
Description:
Model: SK
1. Capacities (kg): 200 to 500
2. Resistance strain measurement methods
3. On-line tension measurement accurately
4. Compact structure, durable in use, easy to install
5. High comprehensive precision, high stability
6. High quality alloy steel with nickel plating
7. Hermetically seal structure
8. The level of water-proof reaches IP67
Applications:
Be suitable for on-line tension measurement such as metal wire, cable and similar products; be widely used for the curly control equipment and production line of printing、composite、coating、cutting、papermaking、rubber、textile、electric wires、cable and film
Specifications:
|
Rated Load |
kg |
200,300,500 |
|
Rated Output |
mV/V |
1.5 |
|
Zero Balance |
%R.O. |
±1 |
|
Comprehensive Error |
%R.O. |
±0.3 |
|
Compensated Temp. Range |
℃ |
-10~+40 |
|
Operating Temp. Range |
℃ |
-20~+70 |
|
Temp. effect/10℃ on output |
%R.O./10 ℃ |
±0.03 |
|
Temp. effect/10℃ on zero |
%R.O./10 ℃ |
±0.03 |
|
Recommended Excitation Voltage |
VDC |
5-12 |
|
Maximum Excitation Voltage |
VDC |
15 |
|
Input impedance |
Ω |
380±10 |
|
Output impedance |
Ω |
350±5 |
|
Insulation resistance |
MΩ |
≥5000（50VDC） |
|
Safe Overload |
%R.C. |
150 |
|
Ultimate Overload |
%R.C. |
300 |
|
Material |
Alloy Steel |
|
|
Degree of protection |
IP67 |
|
|
The length of the cable |
m |
3m |
|
Wiring code |
Ex: |
Red：＋ Black：– |
|
Sig: |
Green：＋ White：– |

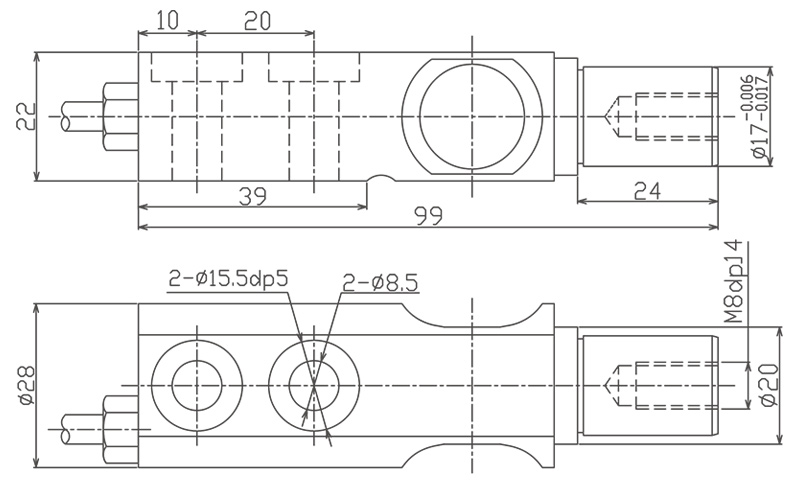

Dimensions(in mm)：
Wiring Code：
