RL

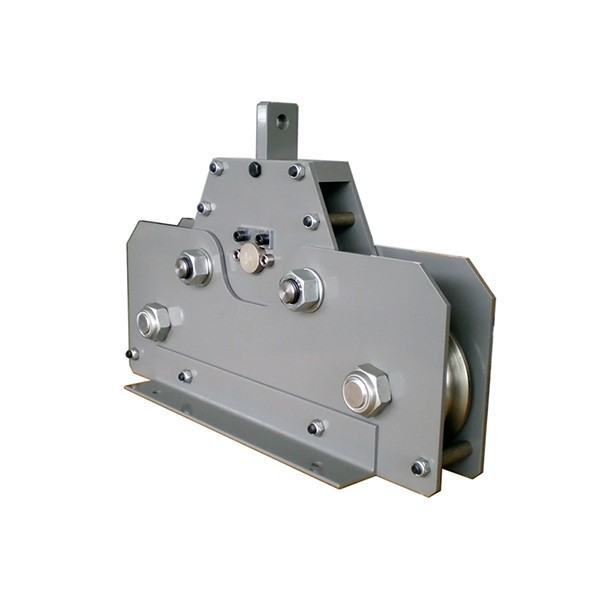

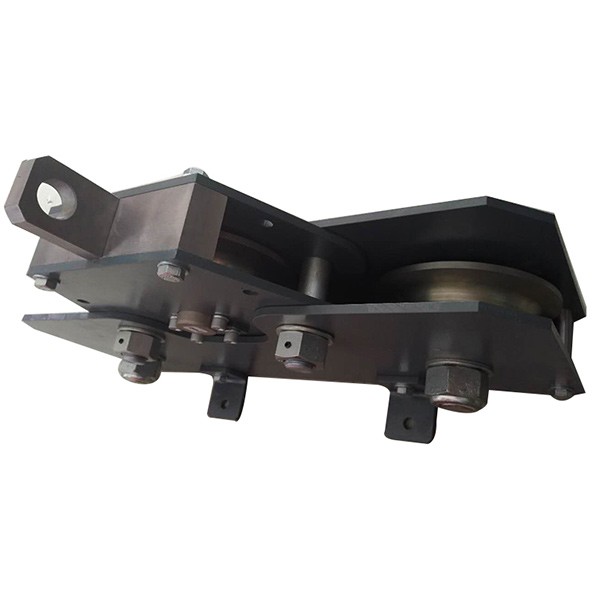

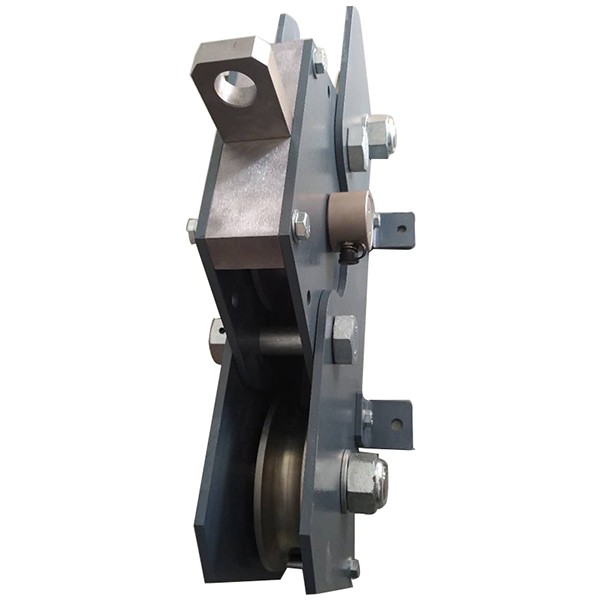

Tension Sensor

Description:

Model: RL
Features:

1. Capacities (t): 5 to 30

2. Resistance strain measurement methods

3 .High comprehensive precision, high stability

4. Degree of protection reaches to IP65

5. Removable, compact structure, easy to install and maintenance

6. The range of tension can reach to 500ton; the diameter of rope can reach to 115mm

Applications:

Be suitable for measuring the tension, the object is including cable, anchor and other similar products

Specifications:

Rated Load	t	5,10,20,30
Rated Output	mV/V	1.2-1.5mV/V
Zero Balance	%R.O.	≤±2
Comprehensive Error	%R.O.	<±3
Non-linearity	%R.O.	<±0.5
Hysteresis	%R.O.	<±0.5
Repeatability	%R.O.	<±0.5
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Steel
Degree of protection		IP65
The length of the cable	m	10m
Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green:＋ White:–

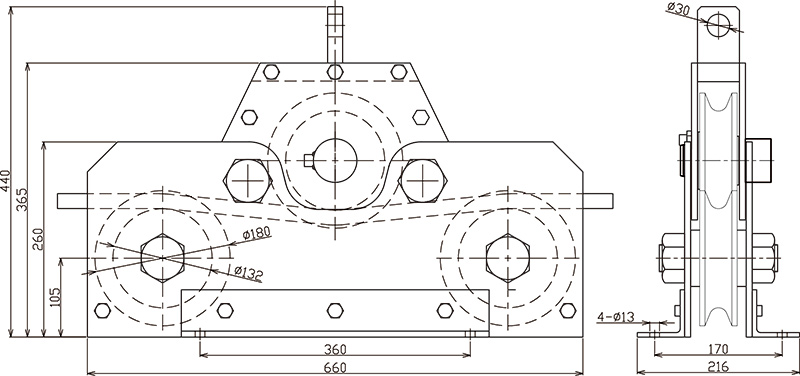

Dimensions(in mm)：

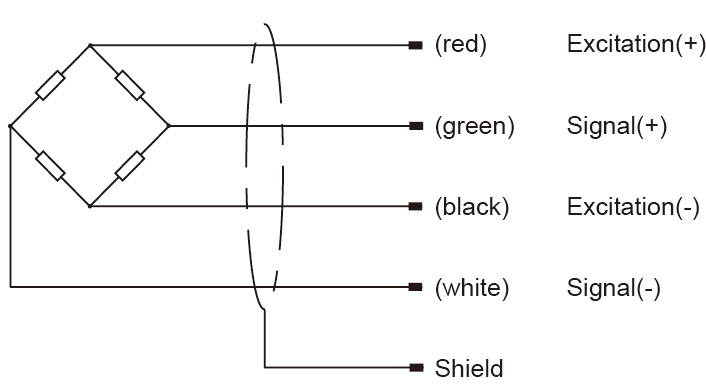

Wiring Code：
