Description:

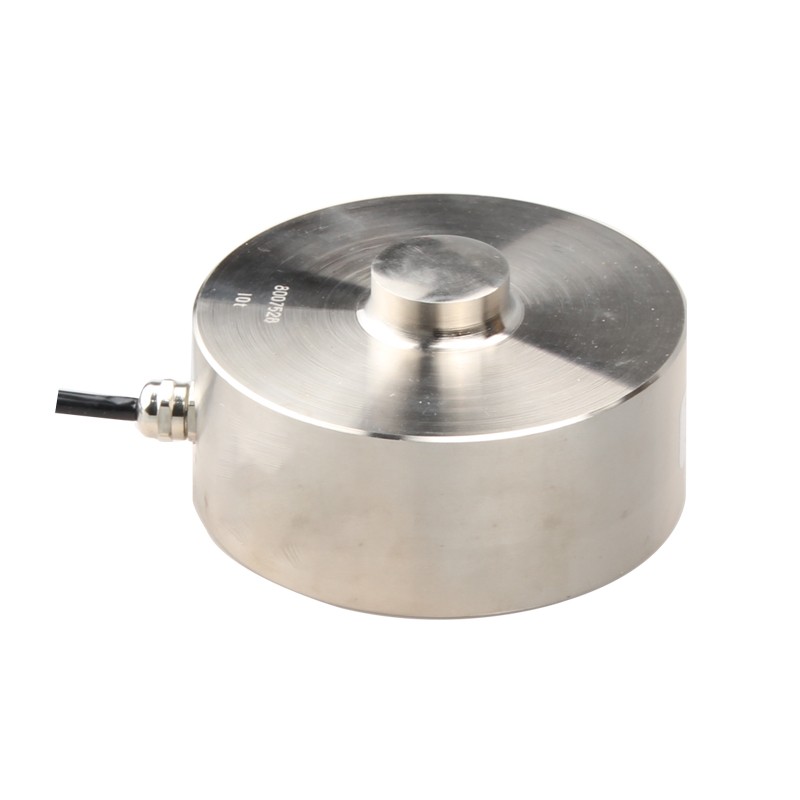

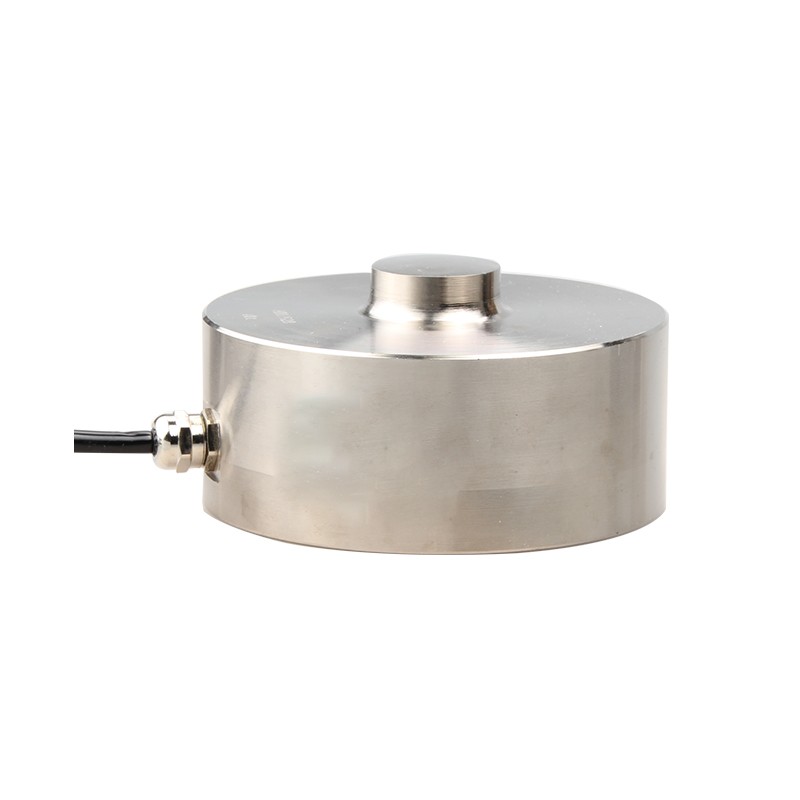

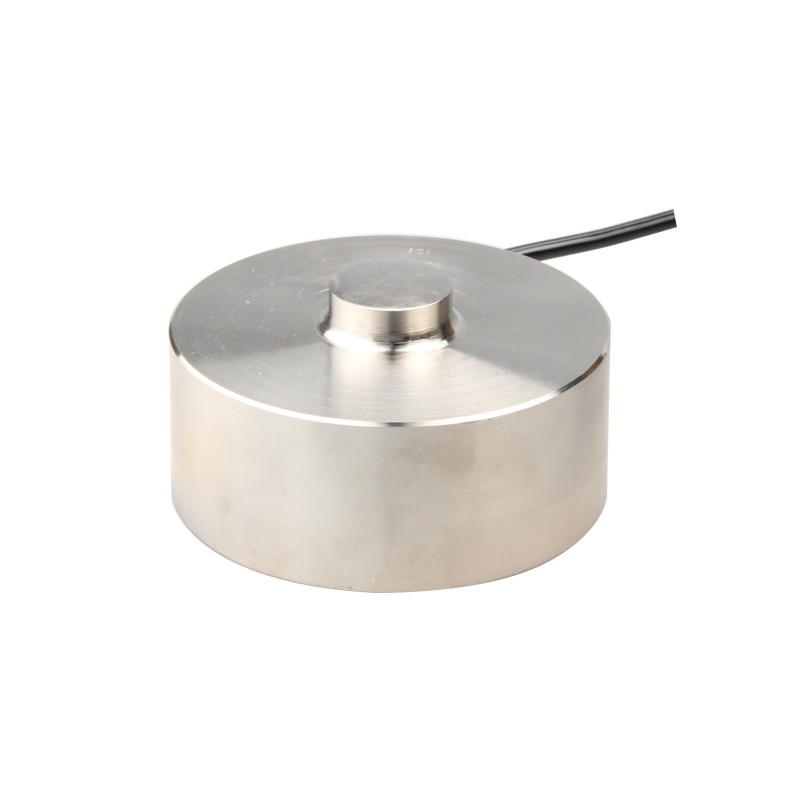

Model: LCD800
Features:
1. Capacities (t): 0.1 to 50
2. Compact structure, easy to install
3. Compression load cell
4. Low profile, spherical designing
5. High comprehensive precision, high stability
6. High quality alloy steel with nickel plating
7. Alloy steel or Stainless steel material
8. Module installing
Applications:
Be suitable for a wide range of applications including testing or weighing systems.
Specifications:
Rated Load | kg | 100,200,500 |
t | 1, 2, 5,10,20,30,50 | |
Rated Output | mV/V | 2.0±0.2 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.2 |
Creep/30 minutes | %R.O. | ±0.05 |
Non-linearity | %R.O. | ±0.2 |
Hysteresis | %R.O. | ±0.2 |
Repeatability | %R.O. | ±0.05 |
Compensated Temp. Range | ℃ | -10~+40 |
Operating Temp. Range | ℃ | -20~+70 |
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 15 |
Input impedance | Ω | 770±10 |
Output impedance | Ω | 700±5 |
Insulation resistance | MΩ | ≥5000（50VDC） |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Alloy Steel/Stainless Steel | |
Degree of protection | IP67/IP68 | |
The length of the cable | m | 100kg-5t: 5m 10t-30t：10m 50t:15m |
Wiring code | Ex: | Red：＋ Black：– |
Sig: | Green：＋ White：– |

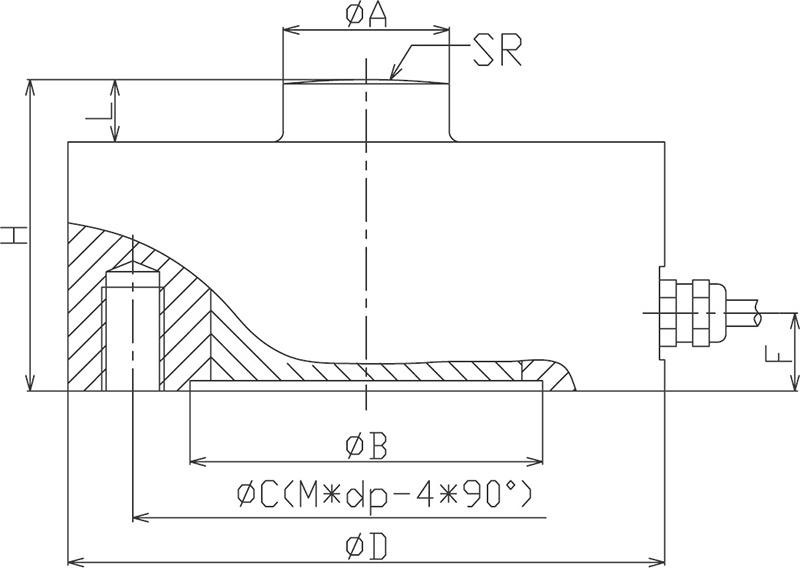

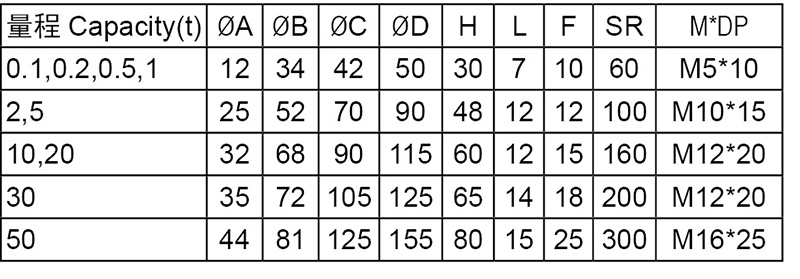

Dimensions(in mm)：
Wiring Code：
