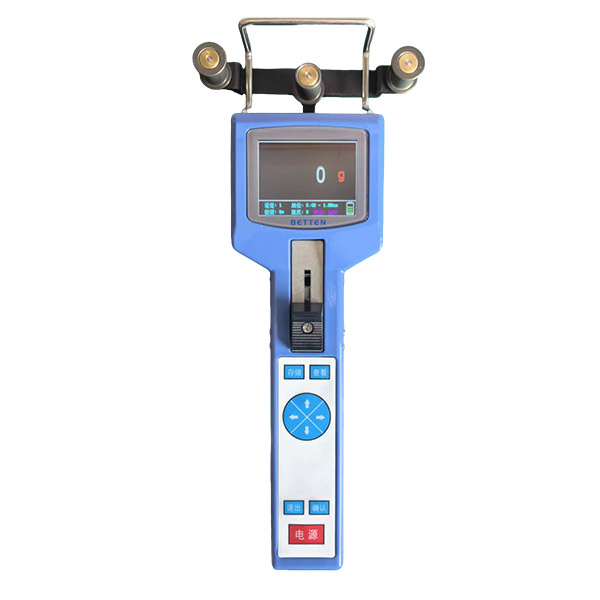

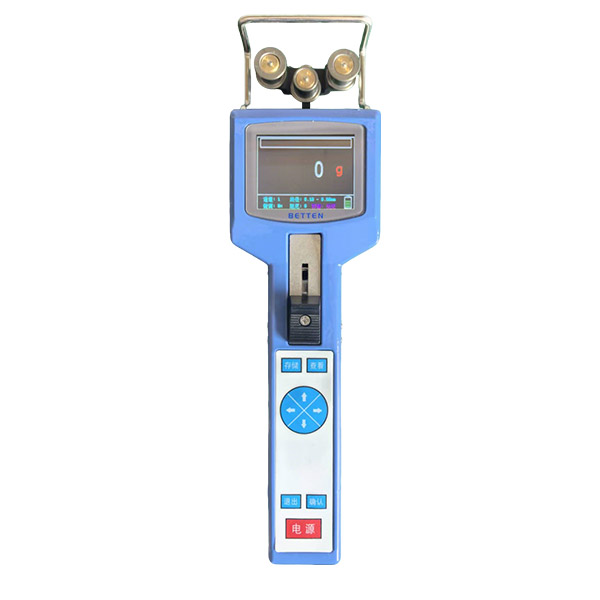

NTW Series
The NTW series offers 10 different tension ranges, ranging from 2.0-200cN to 1.0-100.0daN.
New features of the NTW Series model.
1. Utilize specialized sensor technologies to automatically clear measurement positions at any desired location, thereby enhancing measurement accuracy and efficiency.
2. Three modes of display.
– Digital display.
– A status bar displaying trend changes along with numerical indicators.
– Curved graph with numerical display.
3. Wire diameter compensator: compensates for errors that occur when the wire diameter of the material differs from the specified material.
4. the motion structure of the guide frame and guide wheel make it Easy to capture the material being measured.
5. The screen display can be rotated at intervals of 90 degrees, making it easy to view at different angles. It can also be displayed in a fixed orientation.
6. It can identify up to 10 different materials, providing more precise measurements for specialized materials.
6. LIPO lithium-ion polymer battery (sustainable operation for approximately 10 hours).
7. The material being tested, the guide wheel, and the screen are all located on the same plane. During the test, the test data, the condition of the guide wheel, and that of the material being tested can be observed clearly.
8. Equipped with both a Chinese operating system and an English operating system.
9. Depending on the measurement range and requirements, the unit of display for the measurement value can be selected as g, kg, cN, N, daN, lb.
10. Three types of memory patterns.
– Mode A: Records measurement values at a rate of 2 Hz, allowing calculation of the maximum, minimum, average, and standard deviation of the recorded data. The data can also be displayed graphically.
– Mode B: Records the last 100 data points during the test, calculates the maximum, minimum, average, standard deviation, and final value of the recorded data, and can display the recorded data as a curve graph.
- C Mode: Records measurement values at a rate of 100 Hz, allowing calculation of the maximum, minimum, average, and standard deviation of the recorded data. The data can also be displayed graphically.
13. The device offers a feature for fine-tuning results. Even if there are slight discrepancies between the materials measured on-site and the standard calibration materials, the accurate values can be displayed without re-calibration.
14. Functional settings can be protected with passwords, thereby enhancing the security of the settings.
NTW Model
MODEL | Tension range | Measuring head width | Length th of roller |
NTW-200 | 2.0-200.0 cN | 65mm | 7,10,15,20,30,40,50mm |
NTW-500 | 5.0-500.0 cN | 65mm | 7,10,15,20,30,40,50mm |
NTW-1000 | 10-1000 cN | 65mm | 7,10,15,20,30,40,50mm |
NTW-2000 | 20-2000 cN | 116mm | 7,10,15,20,30,40,50mm |
NTW-2500 | 25-2500 cN | 116mm | 7,10,15,20,30,40,50mm |
NTW-5000 | 50-5000 cN | 116mm | 7,10,15,20,30,40,50mm |
NTW-10K | 0.1-10.0daN | 116mm | 7,10,15,20,30, mm |
NTW-20K-F | 0.2-20.0daN | 216mm | 7,10,15,20, 30mm |
NTW-30K-F | 0.3-30.0daN | 216mm | 7,10,15,20, 30mm |
NTW-50K-F | 0.5-50.0daN | 216mm | 7,10,15,20, mm |
NTW-60K-F | 0.6-60.0daN | 216mm | 7,10,15,20, mm |
NTW-100K-F | 1-100daN | 216mm | 7,10,15,20, mm |
Model Rules: Model – Order Code
Optional accessories.

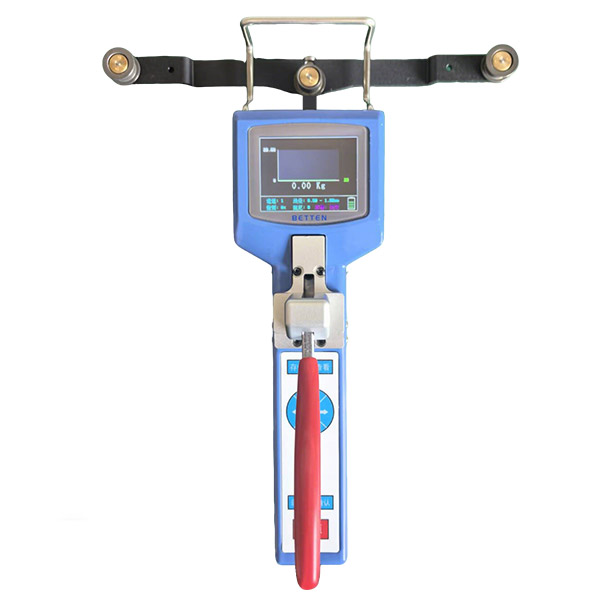

Order code: F. power-saving, suitable for weights ranging from 20 kg to 100 kg. The power-saving for instruments is standard equipment.
For example, selecting a meter with a range of 0.1-10 kg from the NTW series requires a power-saving handle and an 20mm guide wheel. The model is NTW-10K-F-20
Parameter specifications:
Accuracy: ±2% of full-scale range (FS).
Update frequency displayed: 0.5 seconds.
Optional units: gf, cN, N, kgf, daN, LB (different ranges with different units).
Adjustable Range: The display value can be adjusted by ±10 steps, with a range of 1% of full scale, according to on-site requirements.
Line speed: 1000m/min
Storage values: minimum value, minimum peak value, average value.
Display: 2.4-inch full-color TFT screen.
Casing dimensions: 76 × 46 × 275 mm
Power source: Lithium-ion rechargeable battery, provides approximately 10 hours of continuous operation.
Operating temperature: 10-45°C, 90% relative humidity or lower.
Attachments: Instruments, user manual, certification certificate, charger, instrument case.
Applications: Twisting machines, winding machines, wire cutting machines, carbon fiber winding equipment, fiber optic winding equipment, optical cable.
Production equipment, glass fiber winding equipment, steel wire rope production equipment, tire production equipment, steel wire rope production equipment.
The NTW shipment includes a tensiometer, a portable instrument case, a charger, a Chinese user manual, and a certificate of conformity.
