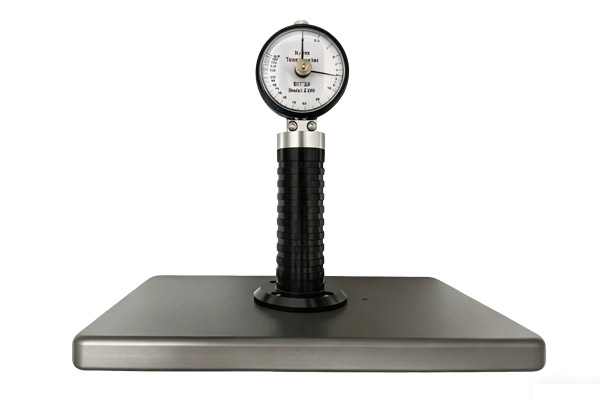

Z-200 Ensures Smooth Operation Of Paper Machines

Three purposes of measuring the tension of forming mesh

1 correct tension = more stable operation

2 prevent paper mesh wrinkle, tear, reduce downtime

3 the measurement is simple, fast and reliable.

Correct tension = smoother operation

The tension of the papermaking wire, if set improperly, will have a negative effect on the operation of the paper machine. Too low a tension setting will reduce the stability of the papermaking web, causing wrinkles or unexpected web deformation. Excessive tension will have an impact on the mesh, which in turn affects the dewatering performance, and will increase the load on the stick and bearing, causing the mesh to tear. And then there's the danger and the loss of productivity. If the tension of the papermaking net is uneven across the width of the machine, it will cause the guide rod to side, causing serious wear and uneven permeability of the net.

Suitable for measuring the tension of forming fabrics and dry blankets

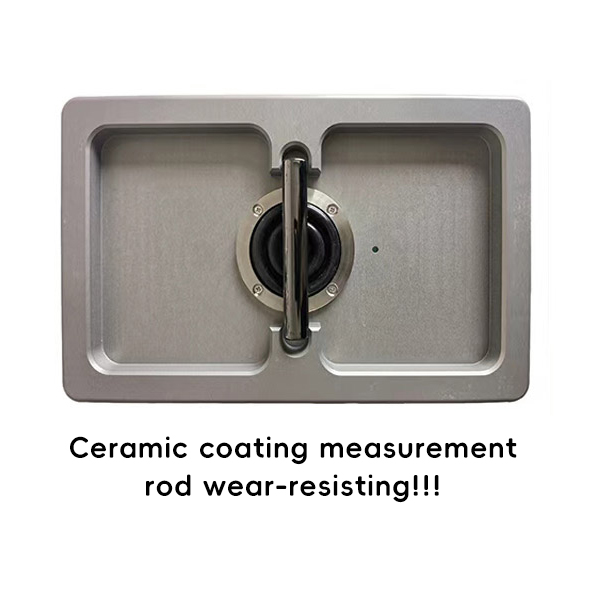

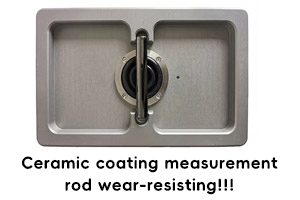

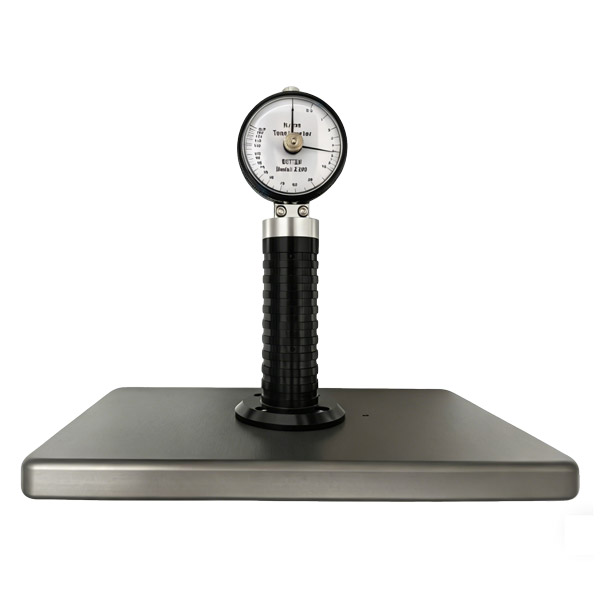

The 2-200 Tensiometer is compact, precise and robust for measuring the tension of paper web in motion. Easy and fast reading, easy to check and set the ideal tension value. The chassis frame isolates a piece of fabric for the pressure sensing element, and the sensing element presses the fabric under the action of pre-pressure, and the displacement of the sensing element is recorded and converted into the tension of the fabric. The maximum value can be recorded by a memory pointer, which can be cleared by a mechanical device. Therefore, even in dark and inconvenient measuring places, the measured tension value can be recorded accurately and one hand can be left free for safety.

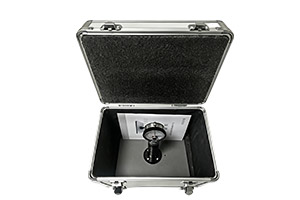

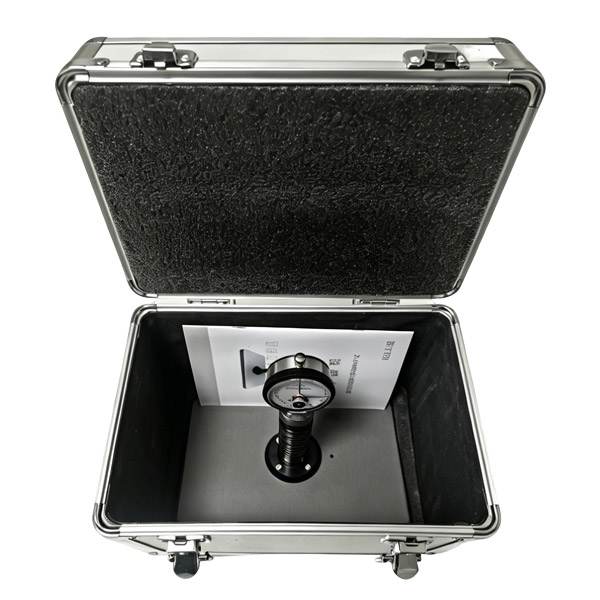

Delivery included  Operation manual  Instrument box  Certificate

Technical Data Specifications

Model    Z-200

Principle of measurement    Measurement of stroke under preset spring-load

Measuring range            5-200 N / cm

Accuracy                  ± 8% of reading

Suitable for                forming mesh, blanket, dry mesh

Safety Features            Any position can be operated by one hand, memory idler structure.

Protection class            IP64

Outline size                230 x 140 x 210 mm

Weight                    1.16kg
