Description：

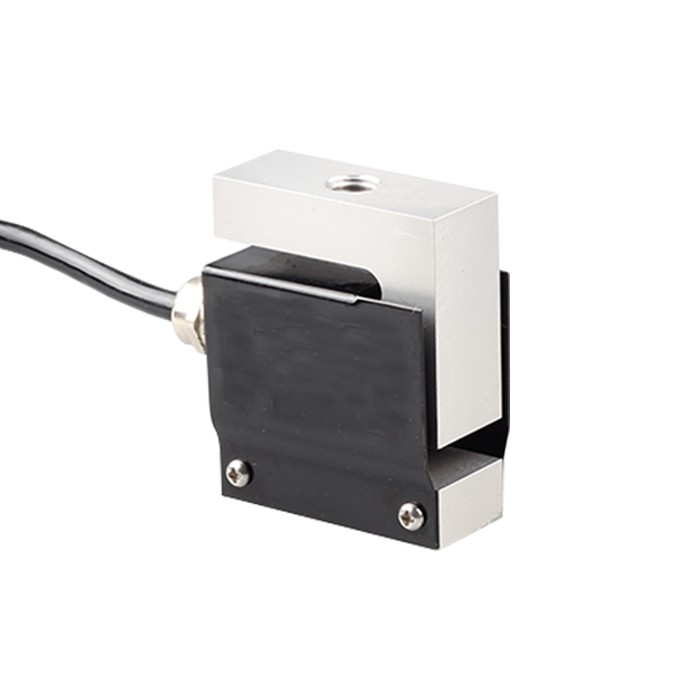

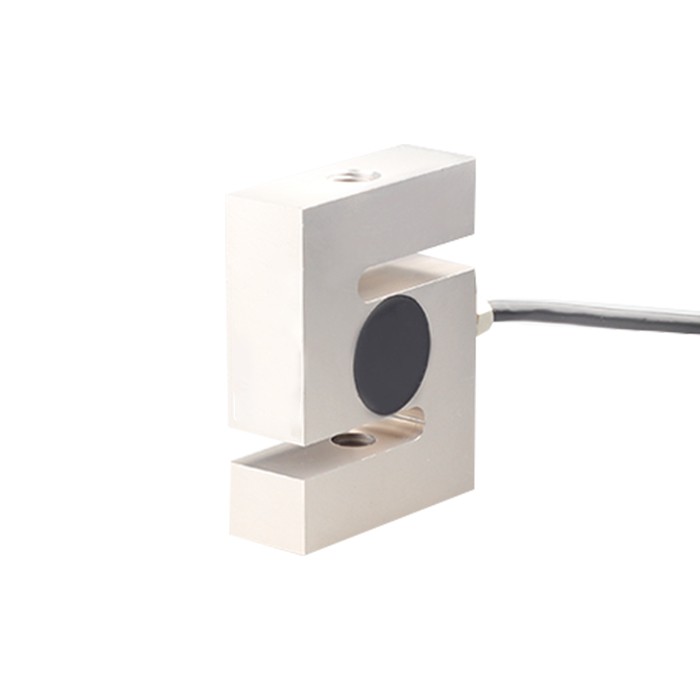

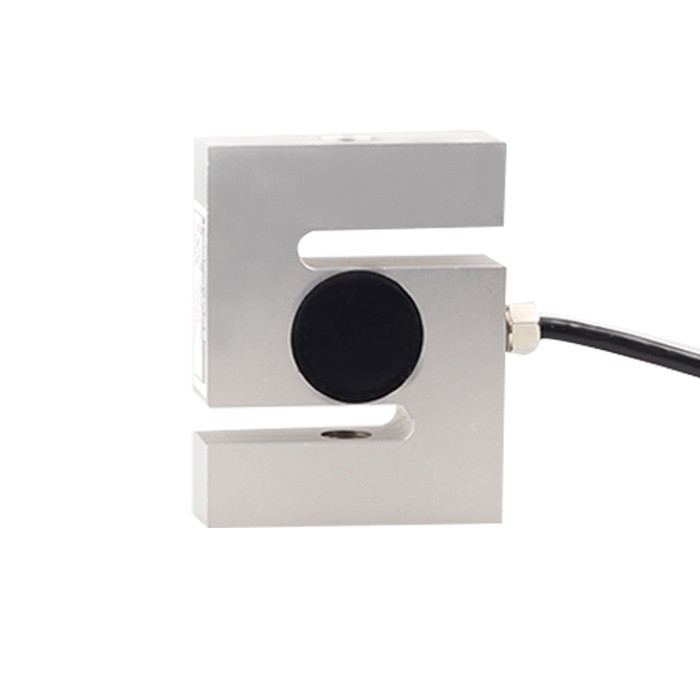

Model: STK
Features:
1. Capacities (kg): 10 to 500
2. Compact structure, easy to install
3. Compression and tension load cell
4. High comprehensive precision, high stability
5. Anodized Aluminum Alloy
Applications:
Be suitable for Crane Scales, Electronic mechanic scales, Hopper and tank weighing, Packing Scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.
Specifications:
Rated Load | kg | 10,20,50,80,100,200,300,500 |
Rated Output | mV/V | 2.0±0.0050 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.03 |
Creep/30 minutes | %R.O. | ±0.03 |
Compensated Temp. Range | ℃ | -10~+40 |
Operating Temp. Range | ℃ | -20~+70 |
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.03 |
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.03 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 15 |
Input impedance | Ω | 380±10 |
Output impedance | Ω | 350±5 |
Insulation resistance | MΩ | ≥5000（50VDC） |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 200 |
Material | Aluminum | |
Degree of protection | IP65 | |
The length of the cable | m | 3m |

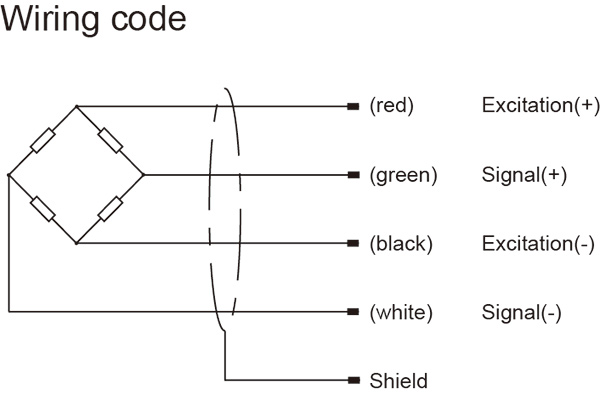

Wiring code | Ex: | Red：＋ Black：– |
Sig: | Green：＋ White：– |

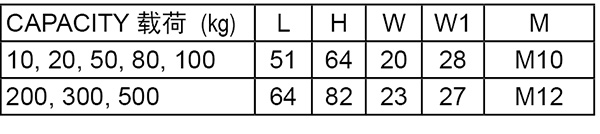

Dimensions(in mm)：
