aircraft flying wire tension meter
Another special application is aircraft flying wire tension testing. Because the measurement space is limited, the measuring head of aircraft flying wire tension meter must be very small. The above several cable tension testers and cable tension measuring instruments cannot be used. Betten Technology Co., Ltd. has developed aircraft flying wire tension meter NTA series specially designed for the measurement of aircraft flying wire tension meter and aircraft flying wire tension measurement. The following are the specific parameters of the NTA series.

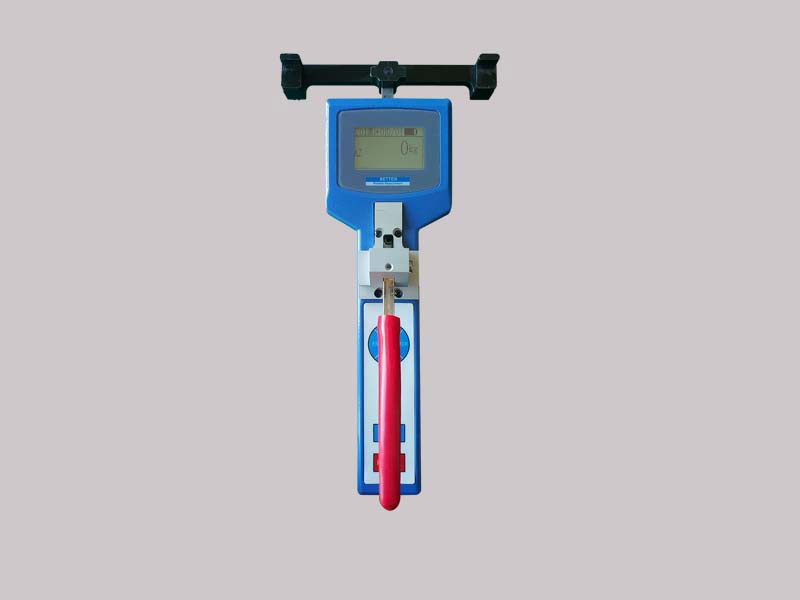

NTA series Hand-held digital tension meter specially designed for measuring the tension of 0-5.5mm thick aircraft flying wire and aircraft flying wire, suitable for industries such as aircraft manufacturing.
NTA series has 10 kinds of tension range from 1.0-10.0cdaN to 10.0-100.0daN, the width of the measuring head is different in different ranges.
1. The patented technology automatically resets the meter to zero , which improves the measurement accuracy and facilitates measurement.
2. Equipped with a line catching motion structure and labor-saving lever, it is easy to capture the measured material.
3. Rugged, non-slip aluminum case, resistant to electrical interference.
4. LIPO lithium-ion polymer battery (about 60 hours of continuous operation).
5. The tested material, the guide roller, and the screen are located on the same plane. During the test, the test data, the status of the guide roller and the tested material can be seen.
6. A maximum of 10 materials can be accurately calibrated. With the wire diameter compensator, the tested wire diameter range is larger.
7. character menu setting interface, easy to operate.
8． According to different ranges and needs, the measurement value display unit can be selected g, kg, c N, N, daN, lb
9. It can record the maximum value, minimum value, peak value and average value in the measurement process, and can also store 10 independent measurement values.
10. Programmable setting of the maximum and minimum value of the trend status bar, clearly determine the range of tension change, and have the advantages of mechanical instrument trend display.
11. Provides fine adjustment of display results. If There is a slight deviation between the material measured on site and the standard calibration material, and accurate values can be displayed without recalibration.
12. Function settings can be protected by passwords to improve setting security.
13. Betten tension meter provides two display modes, taking into account the advantages of accurate electronic tension meter reading and mechanical tension meter trend display.
Measuring head width
Accuracy : (factory calibration material) 2% full scale (FS), (other materials) 3% FS.
Display update frequency : 0.5 seconds
Optional units: gf, cN, N, kgf, daN, LB (switchable units are different for different ranges)
Adjustable range: The displayed value can be adjusted within ± 10 steps of 1% of full scale according to the site requirements
Line speed: 1000m / min
Stored value: Maximum, minimum, maximum peak, minimum peak, average
Display : Dot-matrix LCD
Shell size: 76 × 46 × 275mm
Power : Lithium-ion rechargeable battery, continuous working for about 60 hours
Operating temperature : 10-45 ° C, 90% relative humidity or less
Accessories : Instrument, instruction manual, certificate, charger, instrument box
