What kind of meter is the laser tension meter?


Laser tension meter is another name for infrared tension  meter. In fact, there is no laser tension meter, but infrared tension  meters. Infrared tension meter is an instrument used to detect the tension of belts such as timing belts and transmission belts. Rely on infrared to measure the vibration frequency of the belt, and calculate the tension of the belt through a formula.

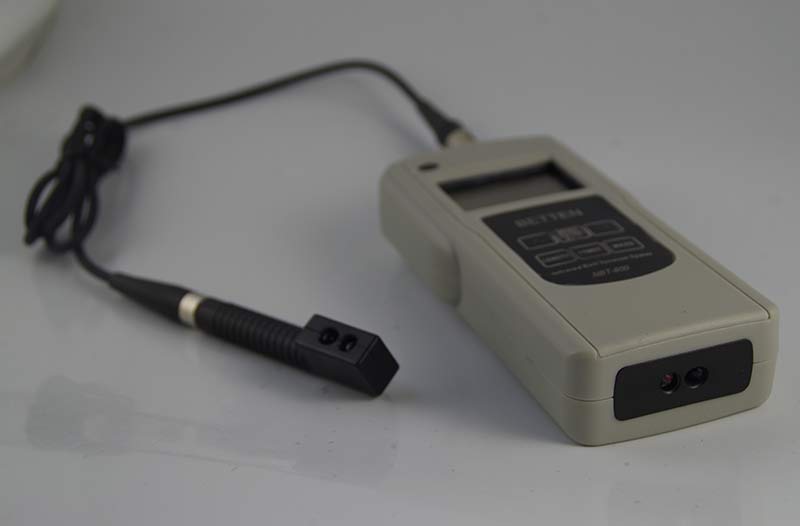

The following is the NBT-800 infrared tension meter produced by Betten Technology Co., Ltd.

1.SUMMARY & FEATURES

The Infrared Belt Tension Meter can measure the belt tension of motor and other machines quickly.

Using laser sensor, direct measurement, more convenient than mechanical sensor.

The size of the split sensor is small, which is suitable for measuring in a narrow space.

Metric or imperial units can be used to display readings.

With automatic power off function.

2.MEASURING PRINCIPLE

This tensiometer can measure the natural vibration frequency of the belt through the emission and reception of the laser, and then calculate the tension value of the belt by combining the input belt mass and the free belt length.

3.SPECIFICATIONS

Measurement Range: 10~800 Hz

Input Range: Free Belt Length Max 99.99 m

Belt Mass Max 9.999 kg/m Digital Sampling Error: < 1%

Display Error: ± 1Hz Total Error: < 5%

Operating Temperature Range: + 10~50 ° C Transportation Temperature Range: - 5~70 ° C Display: LCD

Unit of Measurement: Metric: m, kg/m, N

Imperial: Inch, lbs/foot, lbf Optical Path Measurement Distance: 3~20 mm Depth of Split Sensor: About 66mm

Power Supply: 4 x 1.5 V AAA (UM-4) Battery Size: Main Unit: 140x70x31mm 5.5x2.8x1.2inch

Sensor: 124x21x12mm 4.9x0.8x0.5inch Weight: 130g (Not Including Battery) 4.59oz Standard Accessories:

Main Unit Split Sensor Carrying Case

Instruction Manual
