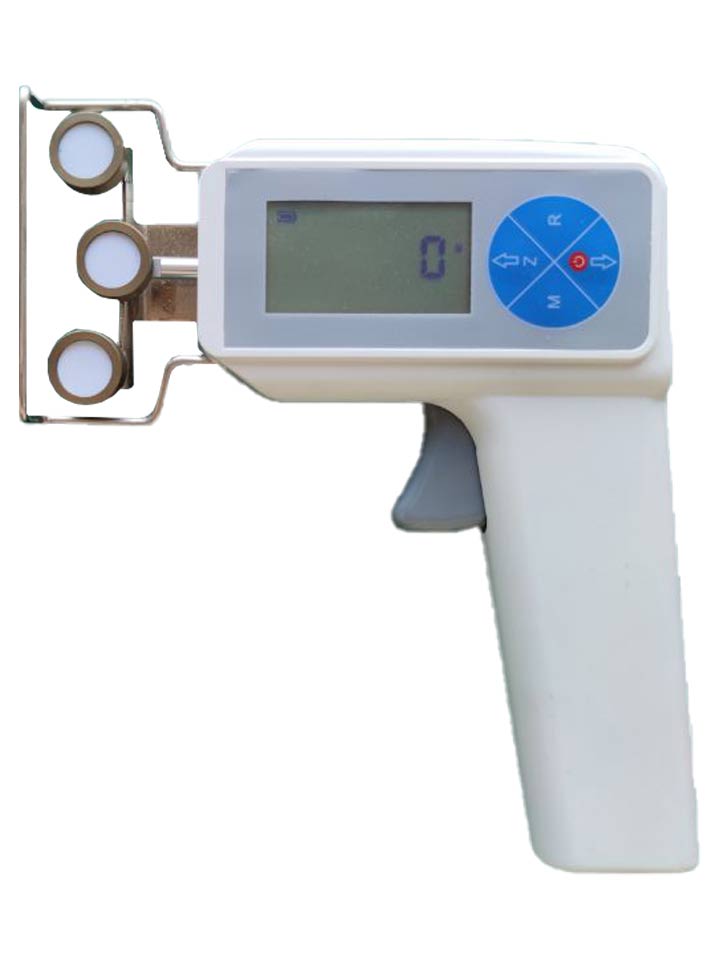

NM series Electronic tension meters
NM series Electronic tension meters is suitable for the measurement of fine materials such as textiles, chemical fiber wires, the measuring range is from 0.3-50.0g to 1-200g
New Features of Model NM Series
1. The patented technology automatically resets the meter to zero , which improves the measurement accuracy and facilitates measurement.
2. The tested material, the guide roller, and the screen are located on the same plane., the test data, the status of the guide roller and the tested material can be seen During the test.
3. The screen display direction can be changed according to the customer's holding method, which is convenient for reading.
4. g, c N can be selected as the unit for measuring value display.
5. Record the maximum value, minimum value and average value during the measurement.
6. Equipped with lead frame and guide roller movement structure, easy to capture the tested material
7. The measuring head of the NTS is a ball bearing V-groove guide roller with a maximum speed of 900 m / min
8.LIPO lithium-ion polymer battery (about 30 hours of continuous operation)
Measuring head width
Calibration materials (Polyamide Monofilament)
Accuracy : (calibration material) ± 1% of full scale (FS), (other materials) ± 3% of full scale (FS)
Display update frequency 0.5 seconds
Optional unit g, cN
Line speed NTS 900m / min
Stored value Maximum, minimum, average
Case size 225X45 X 30 mm
Power Li-ion rechargeable battery, continuous working for about 30 hours
Operating temperature 10-45 ° C, 90% relative humidity or less
Shipment include tension meter, instruction manual, certificate, charger, instrument box
Scope of application Tension measurement of yarn, chemical fiber, fine metal wire in textile, chemical fiber, wire and cable industry
