copper wire tension meter digital tension meter price

The copper wire tension meter is used to measure the tension of the copper wire during the drawing and winding process. NT series digital tension meter is suitable for copper wire tension measuring.

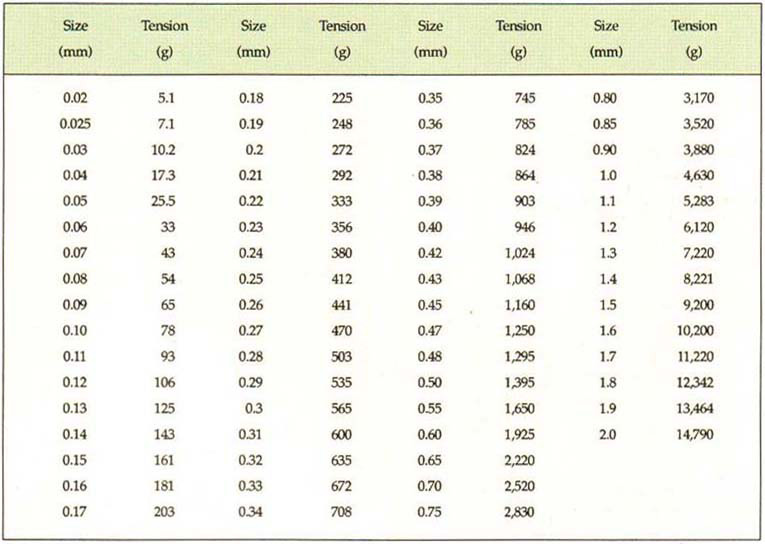

Copper wires require different tensions depending on the diameter range. The tension of the copper wire can be roughly determined according to the following chart.

Betten Technology Co., Ltd. can provide a variety of copper wire tension meter suitable for various measurement environments, with digital display, automatic zeroing, wire diameter compensation functions. Welcome to consult our sales price of digital tension meter price.

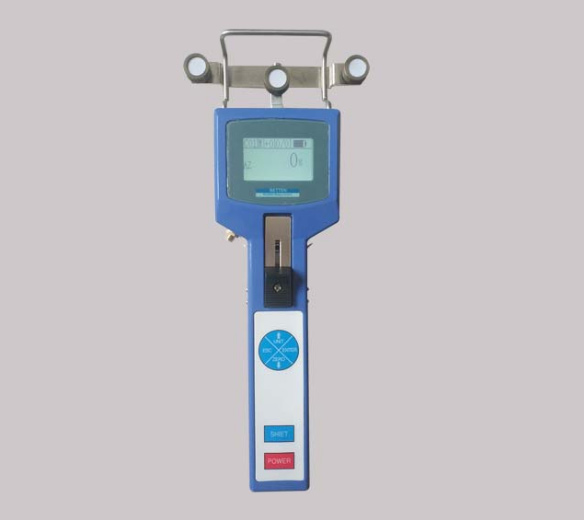

Model NT

Unit conversion: 1daN = 10N = 1.02kg 1cN = 1.02g

Specifications:

Accuracy :  (factory calibration material) 1% full scale (FS), (other materials) 3% FS.

Display update frequency :   0.5 seconds

Optional units:   gf, cN, N, kgf, daN, LB (switchable units are different for different ranges)

Adjustable range: The displayed value can be adjusted within ± 10 steps of 1% of full scale according to the site requirements

Line speed:   1000m / min

Stored value:   Maximum, minimum, maximum peak, minimum peak, average

Display :  Dot-matrix LCD

Shell size:  76 × 46 × 275mm

Power : Lithium-ion rechargeable battery, continuous working for about 60 hours

Operating temperature : 10-45 ° C, 90% relative humidity or less

Accessories :  Instrument, instruction manual, certificate, charger, instrument box
