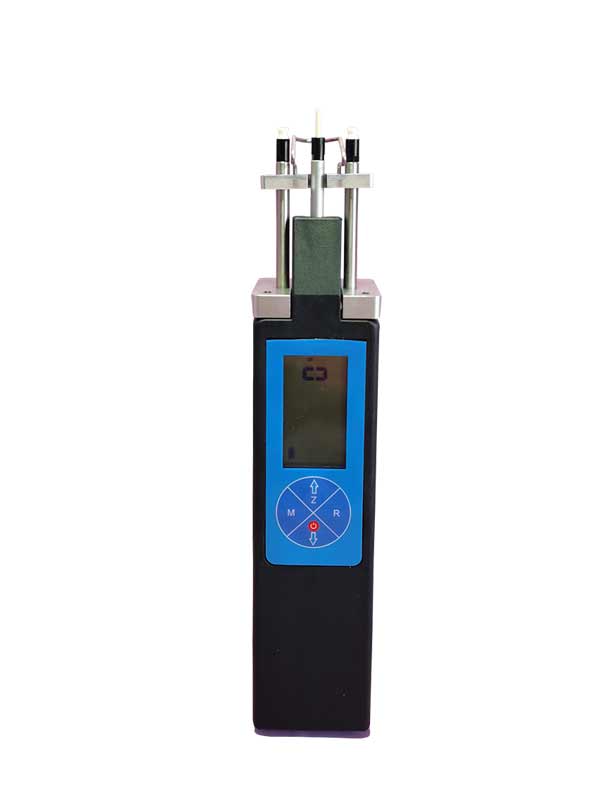

textile tension meter texttile tensiometer

1. Purpose:

Textile tensiometer and textile tension meter are used to measure the tension of chemical fiber filament, knitted yarn, warp, optical fiber, enameled wire and other materials.

2.the main technical parameters:

Accuracy :             (calibration material) ± 1% of full scale (FS), (other materials) ± 3% of full scale (FS)

Display update frequency 0.5 seconds

Optional unit           g, cN

Line speed NTS         900m / min

Stored value           Maximum, minimum, average

Display               LCD

Case size              225X45 X 30 mm

Power                Li-ion rechargeable battery, continuous working for about 60 hours

Operating temperature    10-45 ° C, 90% relative humidity or less

1. When the tension fluctuates, adjust the electronic damping (adjustable ten gears), and the measured value can be displayed stably.

2. small measuring head to measure deep into the limited access space of the wire.

3. The detection head is made of special material and processed by laser, which is wear-resistant and suitable for high-speed measurement.

4. Rollers can be added for low-speed measurement, and the measurement range can be customized.

Key words: textile tension meter texttile tensiometer

Description: Textile tensiometer and textile tension meter are used to measure the tension of chemical fiber filament, knitted yarn, warp, optical fiber, enameled wire and other materials.
