tension meter china, tensiometer china
Description: China Shenyang Betten Technology Co., Ltd. is the leading service provider of tension meter china and tensiometer china. We provide customers with high-quality tensiometers, tension meters, tension testers, wire and cable tensiometers, textile chemical fiber tensiometers, steel cable tensiometers .

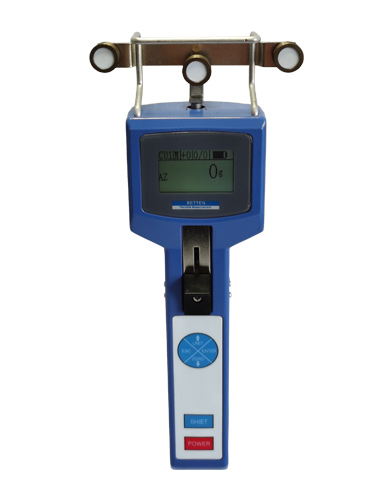

Model NT
Model | Tension range | Measuring head width | Diameter range | Calibration materials (Polyamide Monofilament) | wire diameter compensation |
NT-200 | 2.0-200.0 cN | 65mm | 0.05-0.15mm | φ0.12mm | yes |
NT-500 | 5.0-500.0 cN | 65mm | 0.05-0.2mm | φ0.12mm+φ0.2mm | yes |
NT-1000 | 10-1000 cN | 65mm | 0.1-0.5mm | φ0.2mm+φ0.4mm | yes |
NT-2000 | 20-2000 cN | 116mm | 0.3-0.7mm | φ0.4mm+φ0.7mm | yes |
NT-2500 | 25-2500 cN | 116mm | 0.3-0.7mm | φ0.4mm+φ0.7mm | yes |
NT-5000 | 50-5000 cN | 116mm | 0.4-1.0mm | φ0.7mm+φ1.2mm | yes |
NT-10K | 0.1-10.0daN | 116mm | 0.7-1.2mm | φ0.8mm+φ1.0mm | yes |
NT-20K-F | 0.2-20.0daN | 116mm | 1.0-1.8mm | φ1.2mm | yes |
NT-30K-F | 0.3-30.0daN | 216mm | Customer specified wire diameter range | Customer specified materials | yes |
NT-50K-F | 0.5-50.0daN | 216mm | Customer specified wire diameter range | Customer specified materials | yes |
NT-60K-F | 0.6-60.0daN | 216mm | Customer specified wire diameter range | Customer specified materials | yes |
NT-100K-F | 1-100daN | 216mm | Customer specified wire diameter range | Customer specified materials | yes |
Unit conversion: 1daN = 10N = 1.02kg 1cN = 1.02g
Specifications:
Accuracy : (factory calibration material) 1% full scale (FS), (other materials) 3% FS.
Display update frequency : 0.5 seconds
Optional units: gf, cN, N, kgf, daN, LB (switchable units are different for different ranges)
Adjustable range: The displayed value can be adjusted within ± 10 steps of 1% of full scale according to the site requirements
Line speed: 1000m / min
Stored value: Maximum, minimum, maximum peak, minimum peak, average
Display : Dot-matrix LCD
Shell size: 76 × 46 × 275mm
Power : Lithium-ion rechargeable battery, continuous working for about 60 hours
Operating temperature : 10-45 ° C, 90% relative humidity or less
Accessories : Instrument, instruction manual, certificate, charger, instrument box
Applications: stranding machine, winding machine, wire cutting machine, carbon fiber winding
