Which steel wire tension tester is used to measure the tension of 0.18mm cutting wire?

by BETTEN Tension Meter China TIME:2022-08-20
—— To measure the tension of 0.18mm ultra-fine cutting wire, the accuracy requirements are relatively h

In the process of cutting wire production, cutting wire manufacturers need to make sure that the tension of the steel wire meets the technological requirements, and a steel wire tension tester is needed to measure the tension of the cutting wire. The measuring wire diameter range of the steel wire tension measuring instrument should include 0.18mm. The tension range of 0-10N can meet the test requirements. The NT-1000 steel wire tension tester produced by Shenyang Baitan Technology Co., Ltd. can be used. The following are the specific parameters of the NT series steel wire tension tester.


NT series

General-purpose tension meter is suitable for tension measurement of fibers, wire, fiber optics, cable and other materials.


Features:

1. The patented technology automatically resets the meter to zero , which improves the measurement accuracy and facilitates measurement.

2. Equipped with a wire diameter compensator, which compensates errors caused by different wire diameters and improves measurement accuracy

3. Equipped with lead frame and guide wheel movement structure, it is easy to capture the tested material.

4. V-groove aluminum measuring guide roller with ball bearing.

5. Rugged, non-slip aluminum case, resistant to electrical interference.

6. LIPO lithium-ion polymer battery (about 60 hours of continuous operation).

7. The tested material, the guide roller, and the screen are located on the same plane. During the test, the test data, the status of the guide roller and the tested material can be seen.

8. A maximum of 10 materials can be accurately calibrated. With the wire diameter compensator, the tested wire diameter range is larger.

9. character menu setting interface, easy to operate.

10. According to different ranges and needs, the measurement value display unit can be selected g, kg, c N, N, daN, lb

11. It can record the maximum value, minimum value, peak value and average value in the measurement process, and can also store 10 independent measurement values.

12. Programmable setting of the maximum and minimum value of the trend status bar, clearly determine the range of tension change, and have the advantages of mechanical instrument trend display.

13. Provides fine adjustment of display results. If There is a slight deviation between the material measured on site and the standard calibration material, and accurate values can be displayed without recalibration.

14. Function settings can be protected by passwords to improve setting security.

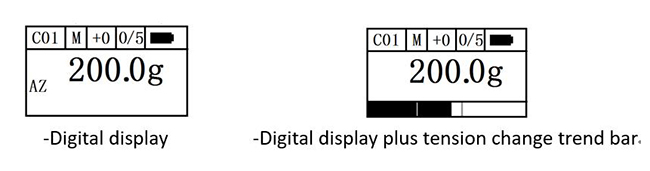

15. Betten tensiometer provides two display modes, taking into account the advantages of accurate electronic tensiometer reading and mechanical tensiometer trend display.

Which steel wire tension tester is used to measure the tension of 0.18mm cutting wire?


Model NT



Model

Tension range

Measuring head   width

Diameter range

Calibration   materials (Polyamide Monofilament)

wire diameter   compensation

NT-200

2.0-200.0 cN

65mm

0.05-0.2mm

φ0.2mm

yes

NT-500

5.0-500.0 cN

65mm

0.05-0.3mm

φ0.2mm

yes

NT-1000

10-1000 cN

65mm

0.1-0.5mm

φ0.4mm

yes

NT-2000

20-2000 cN

116mm

0.3-0.7mm

φ0.4mm

yes

NT-2500

25-2500 cN

116mm

0.3-0.7mm

φ0.4mm

yes

NT-5000

50-5000 cN

116mm

0.4-1.0mm

φ1.2mm

yes

NT-10K

0.1-10.0daN

116mm

0.7-1.2mm

φ1.2mm

yes

NT-20K-F

0.2-20.0daN

116mm

1.0-1.8mm

φ1.8mm

yes

NT-30K-F

0.3-30.0daN

216mm

Customer specified wire diameter range

Customer specified materials

yes

NT-50K-F

0.5-50.0daN

216mm

Customer specified wire diameter range

Customer specified materials

yes

NT-60K-F

0.6-60.0daN

216mm

Customer specified wire diameter range

Customer specified materials

yes

NT-100K-F

10-100.0daN

216mm

Customer specified wire diameter range

Customer specified materials

yes


Unit conversion: 1daN = 10N = 1.02kg 1cN = 1.02g


NT shipment includes tension meter, portable meter box, charger, manual, certificate of compliance.

Specifications:

Accuracy :  (factory calibration material) 1% full scale (FS), (other materials) 3% FS.

Display update frequency :   0.5 seconds

Optional units:   gf, cN, N, kgf, daN, LB (switchable units are different for different ranges)

Adjustable range: The displayed value can be adjusted within ± 10 steps of 1% of full scale according to the site requirements

Line speed: 1000m / min

Stored value: Maximum, minimum, maximum peak, minimum peak, average

Display: Dot-matrix LCD

Shell size: 76 × 46 × 275mm

Power : Lithium-ion rechargeable battery, continuous working for about 10 hours

Operating temperature : 10-45 ° C, 90% relative humidity or less

Accessories :  Instrument, instruction manual, certificate, charger, instrument box


Applications: stranding machine, winding machine, wire cutting machine, carbon fiber winding equipment, optical fiber winding equipment, optical cable

Production equipment, glass fiber winding equipment, steel cord production equipment, tire production equipment, wire rope production equipment.
