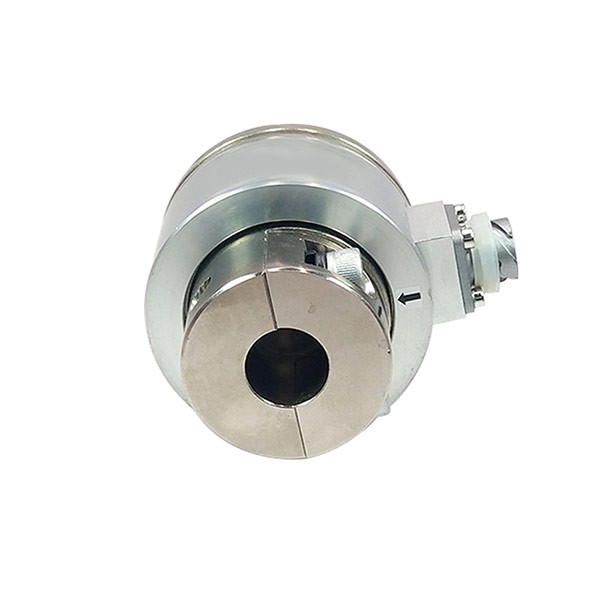

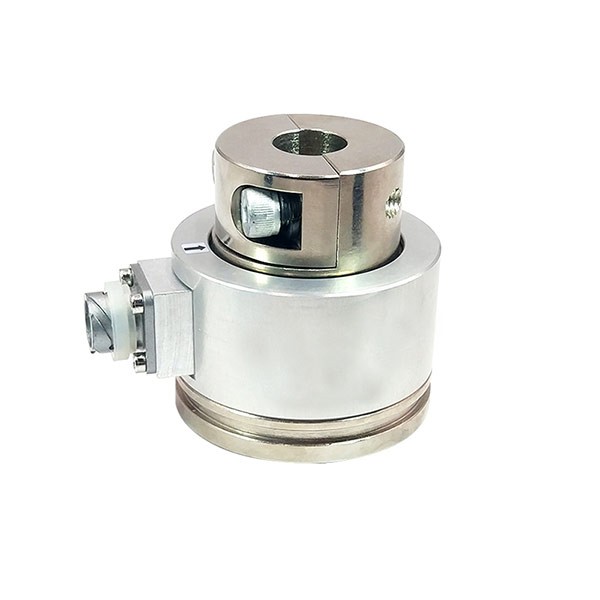

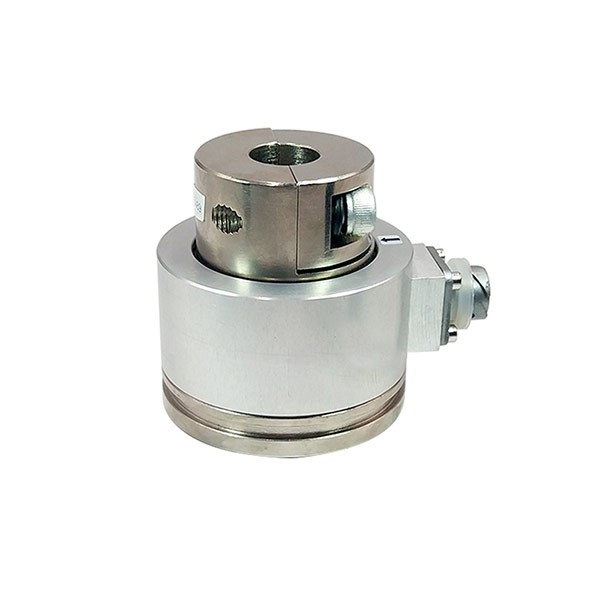

Tension Sensor
Description:
Model: WLT
Features:
1. Capacities (kg): 5 to 100
2. Resistance strain measurement methods
3. Degree of protection can reach to IP65
4. It can accurately measure in the low tension
5. Compact structure, save the space, easy to install
6. High comprehensive precision, high stability
7. High quality alloy steel with nickel plating
8. Stainless steel material is available
9. Many installations types can satisfy various needs
Applications:
Be suitable for measuring the tension of plastic film and tape used for winding on the roller machinery, the object is including mental wire, electric wires, cable
Specifications:
| kg | 5,10,25,50,100 |
Rated Output | mV/V | 1 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.3 |
Compensated Temp. Range | ℃ | -10~+40 |
Operating Temp. Range | ℃ | -20~+70 |
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.1 |
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.1 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 15 |
Input impedance | Ω | 380±10 |
Output impedance | Ω | 350±5 |
Insulation resistance | MΩ | ≥5000（50VDC） |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Alloy Steel,Aluminum | |
Degree of protection | IP66 | |
The length of the cable | m | 3m |
Wiring code | Ex: | Red：＋ Black：– |
Sig: | Green：＋ White：– |

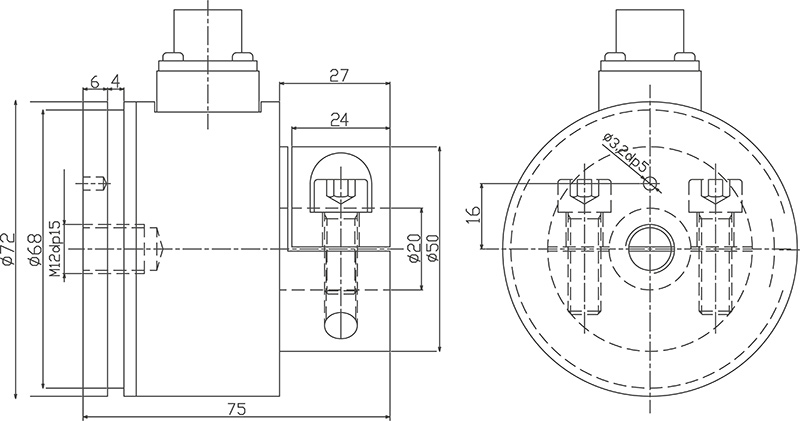

Dimensions(in mm)：

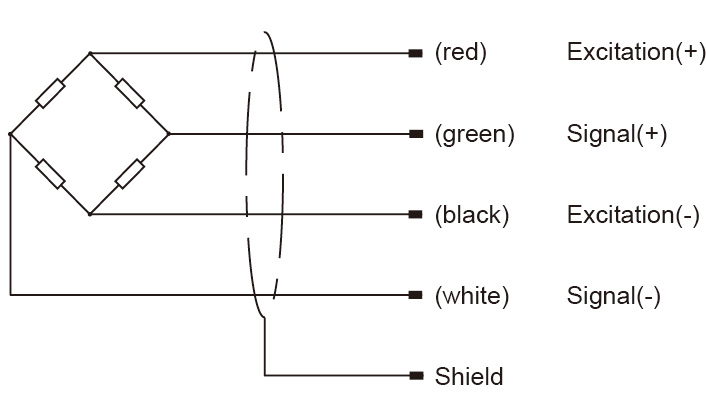

Wiring Code：
